70r/Min Horizontal Wrapping Machine Plastic Tube Wrapping Stretch Film Packaging Machine
70r/Min Horizontal Wrapping Machine Plastic Tube Wrapping Stretch Film Packaging Machine
70r/Min Horizontal Wrapping Machine Plastic Tube Wrapping Stretch Film Packaging Machine
70r/Min Horizontal Wrapping Machine Plastic Tube Wrapping Stretch Film Packaging Machine
70r/Min Horizontal Wrapping Machine Plastic Tube Wrapping Stretch Film Packaging Machine
70r/Min Horizontal Wrapping Machine Plastic Tube Wrapping Stretch Film Packaging Machine
Specifications
Brand Name :
JLPACK
Model Number :
GG800
Certification :
ISO9001，CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
200 sets/Year
Delivery Time :
Stand alone 1 week,the packing line 150 days
Packaging Details :
Wooden case /standard container
Type :
Wrapping Machine,Packing Machine
Application :
Steel & copper tubes
Turning speed :
20-90r/min
Packing material :
Compound paper tape/stretch film/flax
Function :
stretch film wrapping,Wrapping soaps,Tie up
Driven type :
Electric
Weight :
1200KG
Description

JL PACK Horizontal Copper&Steel Tube Packing Wrapping Machine Stretch with 70r/min speed

Packing machine application and installation:

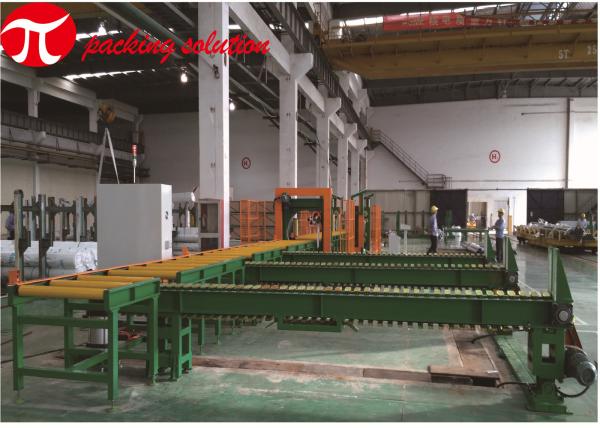

The horizontal wrapping machine is specialized for Steel & Copper tubes .

The wrapped package is well-protected & sealed & looks more tidy.Indicator alarms automatically when trouble occurs.

The machine can be custom designed according to specific object size.

The machine shall be mounted on flat & hard ground, where the ground load should be more than 1ton/m2.

Packing machine installation basic operation:

  • Hoisting the pipe bundles onto the front conveyor line and ready to be wrapped, hoist the packed pipes away from the back convey line after package finished. The next wrapping process should begin after the back line cleared.
  • The wrapping material is tied, fixed and cut by manual.

Packing machine installation main features:

  1. PLC programmable control and HMI operation
  2. Soft stop &soft start functions.
  3. Both automatic and semi-auto working mode for different choice.
  4. Photocell sensors are adopted for fixing the packing position.
  5. Automatic fault alarming
  6. The turning ring is controlled by converter.
  7. Packing material tension could be adjusted.
  8. Separate control panel makes operation & maintenance easily.
  9. Pressing down device and supportive rollers for fix the packaging position.
  10. Double-ring & double-rub wheel system make the wrapping more safe, stable & energetic.
  11. Overlap rate of the wrapping material can be adjusted according to needs.
  12. Automatic material feed & cutting system can be equipped for human operation.

MAIN PARAMETERS:

Items GG800
Height of the product ≤800mm(can be adjustable)
Pipe length Not limited
Weight ≤2T
Conveyor length 1000-6000mm(can be customized)
Conveying speed About 10m-20m/min
Rotating speed About 70r/min
Conveyor height Approx. 1000mm
Overlap scope About 10%-90%
Power output About 2.4kw
Power voltage

380V / 3phase / 50Hz
Material

Compound paper tape/knit tape/anti-rust tape/waterproof tape

LLDPE stretch

stretch film
Material size

width:≤250mm

Max OD:400mm

ID:55mm

Note: the datas are only for reference, the machine can be custom designed according to specific object size.
