Specifications
Brand Name :
jlpack
Model Number :
GG200
Certification :
ISO9001，CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
200 sets/Year
Delivery Time :
Stand alone 1 week,the packing line 150 days
Packaging Details :
Wooden case /standard container
Application :
Wood door,wood panel,batten panel etc
Function :
Stretch film wrapping
Packing material :
Compound paper tape/stretch film/flax
Turning speed :
100r/min
Strapping speed :
2.18 sec/strap
Packing type :
stretch film wrapping
Conveyor height :
Approx 750mm
Power output :
About 1.2KW
Warranty :
1 Year
After-sales service :
Online
Power :
380V/50HZ
Description

100r/min High Efficiency Horizontal Wrapping Machine , Dust Proof Horizontal Stretch Wrapper

Application:

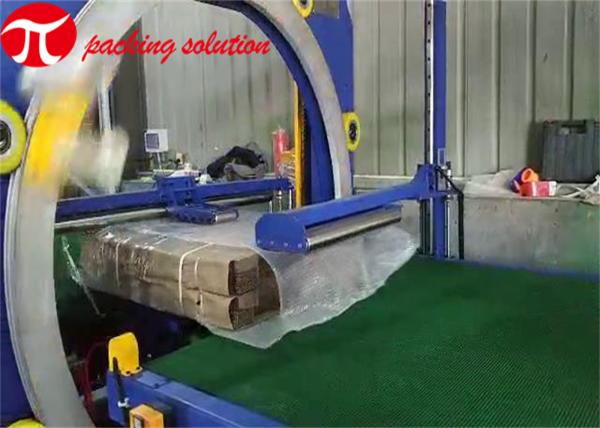

The horizontal wrapping machine is specialized for wrapping horizontal wood panels, wood door, batten board and other horizontal objects. The wrapped package is well-protected & sealed & looks more tidy.

Automatic wood door wood panel packing machine installation main features:

  1. Double-ring & double-rub wheel system make the wrapping more safe, stable & energetic.
  2. PLC programmable control.
  3. Photocell sensors are adopted for fixing the packing position.
  4. Indicator alarms automatically when trouble occurs.
  5. The turning ring is controlled by converter.
  6. Soft stop &soft start functions.
  7. Packing material tension could be adjusted.
  8. Separate control panel makes operation & maintenance easily.
  9. Pressing down device and supportive rollers for fix the packaging position.
  10. Wrapping position reset.
  11. Protective fence ensure safe operation.
  12. Automatic material feed & cutting system can be equipped for human operation.
  13. Can be used for wrapping short objects,with wide application.

MAIN PARAMETERS

Items GG200
Height of the product ≤200mm
Pipe length Not limited
Conveyor length 1000-6000mm (can be customized)
Conveying speed About 6m-12m/min
Rotating speed About 100r/min
Conveyor height Approx 750mm
Overlap scope About 10%-90%
Power output About 1.2kw
Power voltage 380V/ 3phase/50Hz
Material

Compound paper tape/knit tape/anti-rust tape/waterproof tape

stretch film
Material size

width:60-100mm

Max OD:200mm

ID:55mm

Note: the datas are only for reference, the machine can be custom designed according to specific object size.
