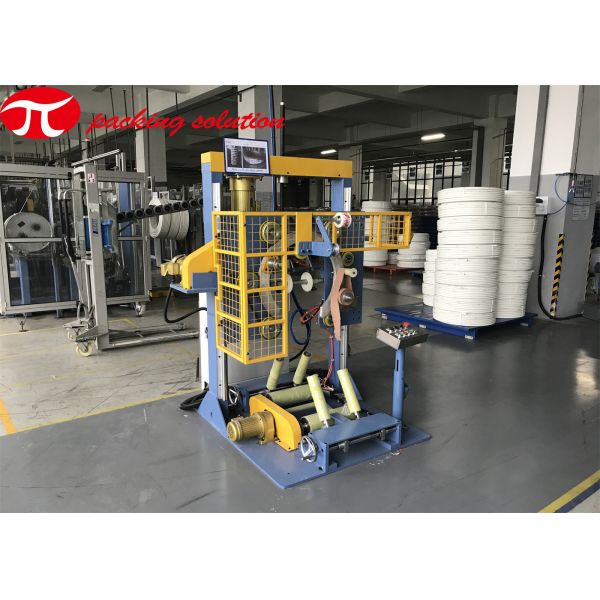

Vertical ​Stretch film PVC conduit pipe Coil spiral packing machine 3.0kw Electric Driven

MACHINE APPLICATION:

The hose coil wrapping machine is designed with the most advanced technology, can achieve the automatic packing for different specification of hose coils, pipe coils, wire coils &etc. It can effectively protect your hose coils and play a good role of waterproof,dustproof, antirust, anti-damaging, anti-aging. The machine can not only well decorate your package objects, but also help you save the labor force, save space in your warehouse, improve your working efficiency.

CHARACTERISTICS:

• PLC automatic control for the hose coil wrapping machine.
• Synchronous wrapping system, enable the coil be wrapped by more than one packaging materials in one packing process.
• Different material release structure for different wrapping material.
• The wrapping material is cut automatically.
• The over lap rate of the packing tape could be adjusted by converter.
• The slip ring height can be regulated for different coil dimension by manual or by motor.
• The wrapping material tension could be adjusted;
• Different packing materials can be choosed;
• The carrier rollers and side rollers covered by polyurethane adopted to fix the coil.
• Separate electrical cabinet for safe operation and trouble shooting.

TECHNICAI DATA

Note: the datas are only for reference, the machine can be custom designed according to specific object size.

OPERATION PROCESS:

• Connect to external power supply as per requirement.
• Rotate the “POWER” switch to connect to the power supply of the machine.
• Load the unpackaged hose coil into the wrapping station, adjust the upper and down protective rollers effectively.
• Adjust the tension of the packing material to suitable degree, and check the ring situation to make sure it can pass through the center of package object smoothly.
• Pull out the wrapping tape and fix it on the coil.
• Set a proper cutting time needed( no need to set for HMI operation).
• Press “Start” button, the machine start working and stops after a complete coil is finished after reaching the set time.
• Fix the tail of the material in the coil by adhesive tape or others.
• Move out the packaged object from the packing station.
