Plastic HDPE Pipe Coil Stretch Film Wrapping Machine With PLC Control Electric Driven
Plastic HDPE Pipe Coil Stretch Film Wrapping Machine With PLC Control Electric Driven
Plastic HDPE Pipe Coil Stretch Film Wrapping Machine With PLC Control Electric Driven
Plastic HDPE Pipe Coil Stretch Film Wrapping Machine With PLC Control Electric Driven
Plastic HDPE Pipe Coil Stretch Film Wrapping Machine With PLC Control Electric Driven
Plastic HDPE Pipe Coil Stretch Film Wrapping Machine With PLC Control Electric Driven
Plastic HDPE Pipe Coil Stretch Film Wrapping Machine With PLC Control Electric Driven
Plastic HDPE Pipe Coil Stretch Film Wrapping Machine With PLC Control Electric Driven
Specifications
Brand Name :
jlpack
Model Number :
GS300
Certification :
ISO9001，CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
Stand-alone 1 week ,the packing line 150days
Packaging Details :
Wooden case /standard container
Supply Ability :
200 sets/Year
Application :
HDPE coil, PE coil,corrugated pipe coil
Driven type :
Electric
Type :
Wrapping machine
Voltage :
380V/50HZ
Packaging material :
Stretch film,paper,plastic
Product name :
Pipe coil packing machine
Ring speed :
20-90r/min
Roller speed :
2-4m/min
Power output :
About 3.0kw
Air supply :
6～8kgf/cm2
Description

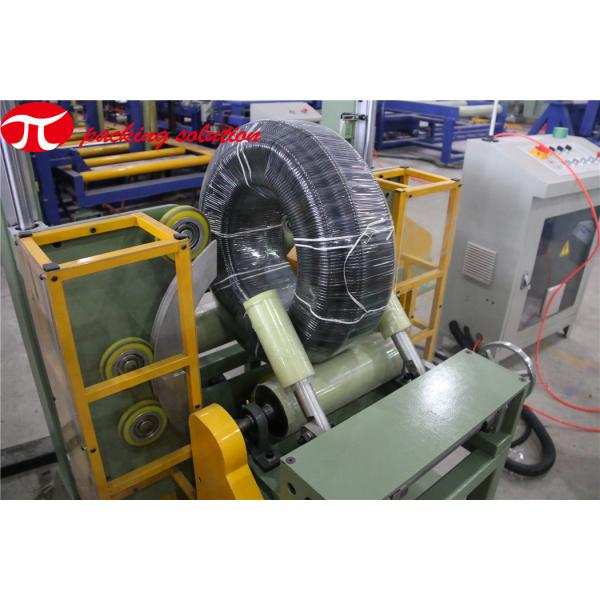

Plastic HDPE Pipe Coil Stretch Film Wrapping Machine with PLC Control Electric Driven

Machine application:

The hose coil wrapping machine is designed with the most advanced technology, can achieve the automatic packing for different specification of hose coils, pipe coils, wire coils &etc. It can effectively protect your hose coils and play a good role of waterproof,dustproof, antirust, anti-damaging, anti-aging. The machine can not only well decorate your package objects, but also help you save the labor force, save space in your warehouse, improve your working efficiency.

Machine technical data:

ITEMS GS300 GS500
Object width ≤300mm ≤500mm
Object OD 500-1000mm 600-1200mm
Object ID ≥300mm ≥400mm
Roller speed 2-4m/min 2-4m/min
Ring speed 30-50r/min 30-50r/min
Suitable material Stretch film, Knit tape,paper tape etc. Stretch film, Knit tape,paper tape etc.
Material width 100-150mm 100-150mm
Material OD 150mm 150mm
Material ID 54mm 54mm
Power output About 3.0kw About 4.5kw
Power voltage 380V,50HZ 380V,50HZ
Air supply 6～8kgf/cm2 6～8kgf/cm2
HMI screen Optional Optional

Note: the datas are only for reference, the machine can be custom designed according to specific object size.

Machine control features:

  • PLC automatic control for the hose coil wrapping machine.
  • Synchronous wrapping system, enable the coil be wrapped by more than one packaging materials in one packing process.
  • Different material release structure for different wrapping material.
  • The wrapping material is cut automatically.
  • The over lap rate of the packing tape could be adjusted by converter.
  • The slip ring height can be regulated for different coil dimension by manual or by motor.
  • The wrapping material tension could be adjusted;
  • Different packing materials can be choosed;
  • The carrier rollers and side rollers covered by polyurethane adopted to fix the coil.
  • Separate electrical cabinet for safe operation and trouble shooting.
