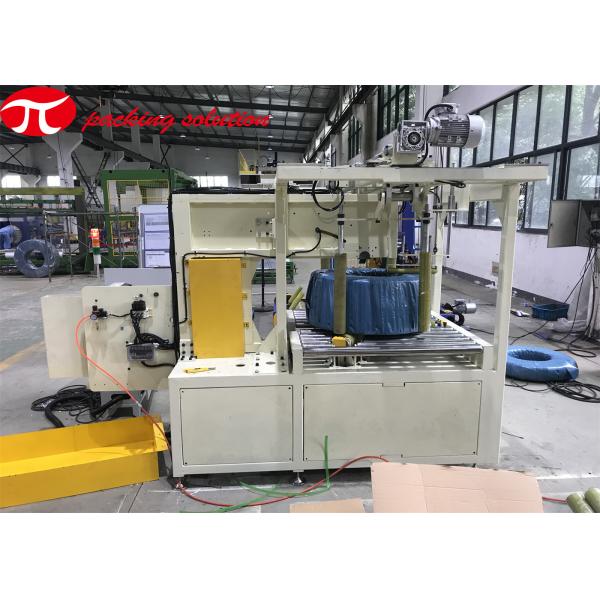

Automated PLC Control Vertical Pvc Hose Coil Packing Wrapping Machine4m/Min Roller Speed
Automated PLC Control Vertical Pvc Hose Coil Packing Wrapping Machine4m/Min Roller Speed
Automated PLC Control Vertical Pvc Hose Coil Packing Wrapping Machine4m/Min Roller Speed
Automated PLC Control Vertical Pvc Hose Coil Packing Wrapping Machine4m/Min Roller Speed
Automated PLC Control Vertical Pvc Hose Coil Packing Wrapping Machine4m/Min Roller Speed
Automated PLC Control Vertical Pvc Hose Coil Packing Wrapping Machine4m/Min Roller Speed
Specifications
Brand Name :
jlpack
Model Number :
GS300-N
Certification :
ISO9001，CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
Stand-alone 1 week ,the packing line 150days
Packaging Details :
Wooden case /standard container
Supply Ability :
200 sets/Year
Application :
HDPE coil, PVC coil, drip coil,etc
Automatic grade :
Automatic
Driven type :
Electric
Coil ID :
≥400mm
Type :
Wrapping machine
Coil weight :
≤300KG
Voltage :
380V/50HZ
Packaging material :
Stretch film
Ring speed :
20-90r/min
Roller speed :
2-4m/min
Description

Automated PLC Control Vertical Pvc Hose Coil Packing Wrapping Machine4m/min Roller speed

MACHINE APPLICATION:

Shanghai Jinglin’s GS series hose wrapping machine is mainly used for wrapping all kinds of water hose, garden hose, drip hose coils, plastic pipe coils and other ring type objets, to make the packed objects relatively sealed, and thus play a good role in the coil protection and decoration. Our machines are CE and ISO 9001 approved. The machine will be custom made based on your specific size of hose.

YOUR BENEFITS FROM THE MACHINE:

1) Saving labor cost

2) Enhance packing efficiency

3) Custom packing solution based on specific size

4) Low consumption of energy and material

5) Easy operation and maintenance

6) Machine operating at low noise level

7) Simple and quick installation

CHARACTERISTICS:

1) Simple structure, easy operation.

2) PLC program control for automatic hose packing.

3) High wearing-resistance of polyurethane friction wheel.

4) The slip ring can be moved up and down, in order to adapt to different inside and outside diameters of the coil.

5) Unique tension adjustment mechanism, ensure a good packing effect for both big and small coils.

6) The overlap ratio of the wrapping film is adjustable based on different needs.

7) Upper and down side rollers designed for fixing and protecting the coil.

8) Pushing-out system is for optional for ejecting the heavy packed coils out from the packing station.

9) The machine can be custom designed according to special coil specification.

MAIN PARAMETERS:

Model GS300
Coil OD 600mm-1200mm
Coil ID ≥400mm
Coil width ≤300mm
Coil weight ≤300KG
Ring speed 20r/min-90r/min,adjustable
Overlap rate 10%-90%
Packing material Stretch film, knit tape, compound paper, etc
Material size ID:76mm; OD:200mm;width:90mm
Power output About 1.5kw
Power supply AC/380V
Pushing device Optional
Labeling device Optional
Synchronous wrapping system Optional

Note: the datas are only for reference, the machine can be custom designed according to specific object size.
