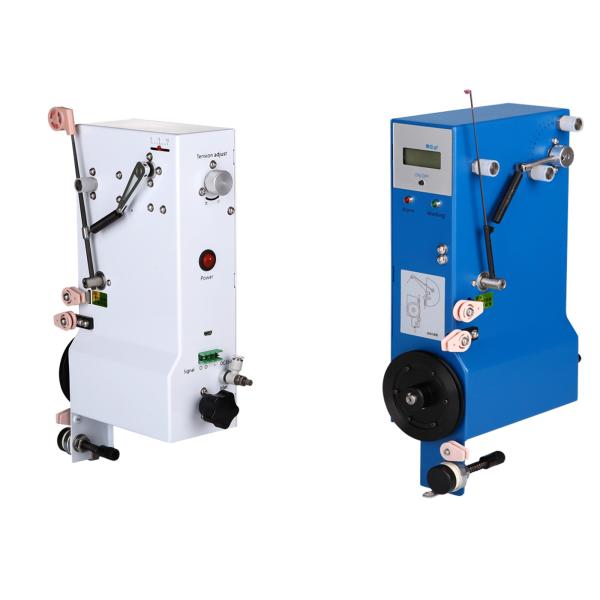

High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second
High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second
High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second
High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second
High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second
High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second
High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second
High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second
Specifications
Brand Name :
QIANHE
Model Number :
SF100-I
Place of Origin :
Hangzhou China
MOQ :
1 set
Price :
US$500-US$1000per set
Payment Terms :
T/T, Western Union ,Paypal
Supply Ability :
500 set per month
Delivery Time :
3-15 working days
Packaging Details :
Carton with foam
Power supply :
DC36-48V
Electric Current: :
2.7A
Mounting hole :
Ф 16mm
Wire Speed :
12m/s 18m/s / 20m/s
Feature :
Feed wire Automaticly
Tension Range :
between 3 g to 800g by changing tension spring
Wire Range :
0.05-0.12mm
Weight :
2.5kg
Application :
Motor / Stator Electronic Transformer /Coil /Inductor
Description

High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second

Description:
The SF series features high speed closed loop servo tensioners with a maximum wire-feeding speed of 18 meters per second. Its high speed/high torque DC servo motor and built-in Adaptive Speed Control software provides fast response to rapid changes in coil winding speed and a wide tension range for high speed precision winding. It features a large screen HD LCD panel for multiple data settings and display. Standard configurations for this series include a built-in tension measurement system

Advantages:

1. Precise, stable and consistent tension for hi-speed precision winding

2. Two stage tension setting

3. Clear multiple data display: real-time tension, real-time wire speed and real-time wire length.

4. Tension range preset function (upper and lower tension limit) with alarm output.

5. Real-time communication with host computer, collect and record winding data (tension diagram, wire length, wire travel speed etc)

Product Details

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hangzhou in China
Packaging Details: 1set/box

Secification :

Servo Tensioner
Part.No Tensioner model Tension range (g) Wire range (mm) Tension bar model Spring Tension bar head structure Tension rod size
1 SF50-Ⅰ/II 3~50 0.02~0.08 SF-1# T1,T2,T3 Ceramic Eylet/Ruby ,Wire Roller(S) Φ0.8*Φ2*150
2 SF100-Ⅰ/II 25~100 0.05~0.12 SF-2# T3,T4,T5 Ruby / Wire Roller(M) Φ1.5*Φ2*200
3 SF200-Ⅰ/II 50~200 0.08~0.17 SF-3# T4,T5,T6 Ruby / Ceramic Pulley(005)/Wire Roller(M) Φ1.5*Φ4*200
4 SF400-Ⅰ/II 100~400 0.12~0.25 SF-4# T5,T6,T8 Ruby / Ceramic Pulley(005)/Wire Roller(L) Φ2.0*Φ4.0*150
5 SF800-Ⅰ/II 300~800 0.21~0.37 SF-5# T8,T9 Ceramic Pulley(S)/Wire Roller(L) Φ2.0*Φ4.0*120
6 SF2000-II 500~2000 0.3~0.8 TR-28# TDM-B/C/D Ceramic Pulley(M) Φ4.0*120

Main parameters

Product Model Power Power Input Air Pressure Mounting Hole Weight Product Size
SF--I DC36V 100W / Ф 16mm 2.0kg 290*130*58(mm)
SF--II 5kg/cm ² 2.5kg 293*130*62(mm)
ST2000-II 200W 3.7kg 350*195*90(mm)

Dimensional drawing

High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second

Product Structure

High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second

Picture Display:

High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second

High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second

Delivery and shipping

High Speed Closed Loop Servo Tensioner With Maximum Wire Feeding Speed Of 18 Meters / Second

Remark:

1.The standard type for wire speed is 12m/s, If any special requirement, please contact us to customized.

2.In the all series of servo tensioner, please confirm output of maximum tension scope. Such as: You need tension range is 1-100g, that can select SF100. According to definition of type. Kindly confirm if need properties of tension attenuator or display tension function and mounted position of the tension wheel. If no need other function,That can choose SF100.
