High Speed Coil Winding Tensioner With Motor Two Stage DC36-48V
High Speed Coil Winding Tensioner With Motor Two Stage DC36-48V
High Speed Coil Winding Tensioner With Motor Two Stage DC36-48V
High Speed Coil Winding Tensioner With Motor Two Stage DC36-48V
Specifications
Brand Name :
QIANHE
Model Number :
ST600D-18
Place of Origin :
Hangzhou China
MOQ :
1 set
Price :
US$500-US$1000per set
Payment Terms :
T/T, Western Union ,Paypal
Supply Ability :
500 set per month
Delivery Time :
3-15 working days
Packaging Details :
Carton with foam
Voltage :
DC36-48V
Power :
100W
Mounting hole :
Ф 16mm
Weight :
2.4kg
Color :
White
Wire Speed :
18m/s
Feature :
Using Servo Motor
Suit :
High and normal speed winding
Application :
Winding Machine
Description

High Speed Coil Winding Tensioner With Motor Two Stage DC36-48V

Servo tensioner isdifferent from the traditional passive-line system and it change

to take the initiative to send lines from the motor, by replacing the spring tension

to change its value,

The linear speed of standard type is 18m/s, and it can be customized that according to your special requirements.

this product comes with tension feedback stabilization system that can automatically tension stable equilibrium

Servo Tension Controller

Applications

-Widely used in motor coil,drive coil,transformer coils,relay coils,voice coil,inductance,resistance wire,textiles and other equipment around the system.

Specification :

Part.No. Product Model Maximum wire speed Tension Stage Tension Scope Applied wire diameter Tension Rod
(g) (mm)
1 ST600D-18 18m/s one stage 3-600 0.02-0.3

TR-25#-200

TR-26#-120

TR-27#-150
2 ST800-18 18m/s two stage 3-800 0.02-0.4
3 ST2000-9 9m/s two stage 300-2000 0.2-0.8 TR-28#-150

Main parameters

Product Model Power Power Input Air Pressure Mounting Hole Weight Product Size
ST600D-18 DC36V 100W / Ф 16mm 2.0kg 265*170*75(mm)
ST800-18 5kg/cm ² 2.5kg 310*170*85(mm)
ST2000-9 200W 3.7kg 350*195*90(mm)

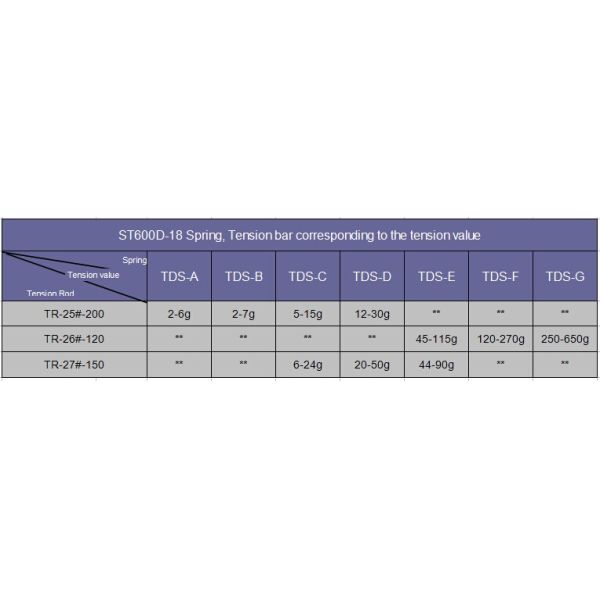

Tension bar corresponding to the tension value

High Speed Coil Winding Tensioner With Motor Two Stage DC36-48V

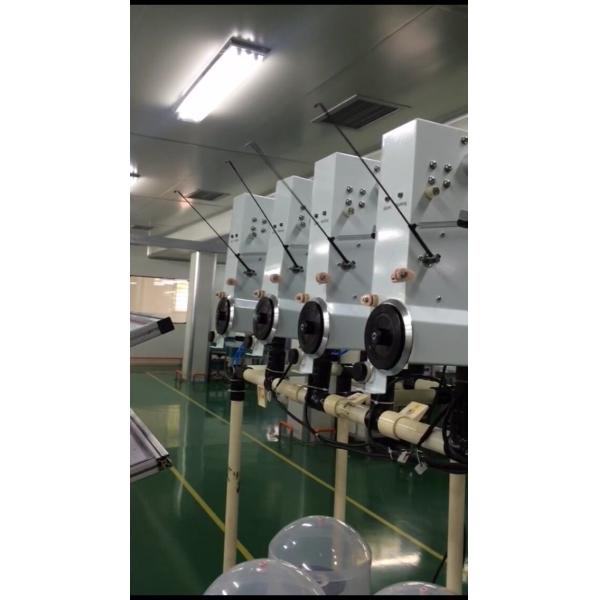

Picture Display:

High Speed Coil Winding Tensioner With Motor Two Stage DC36-48V

We are also provide you other relative precision parts,like Tension arm,servo spring.Tension pully etc
