High Speed Coil Winding Servo Motor Tensioner

Tensioner is a necessary factor for keeping consistent winding accuracy.
Selecting better tensioner provides a sophisticated winding machine with best performance.
Stabilized tensioner improves winding problems and enhances productivity. For example,

stabilized tensioner causes no breaking of wire, raises operation rate, secures the value of

resistance, and increases credibility of the product.
Perfect layer winding leads to material cost cutting and easy adjustment. Therefore, time and cost

for machine maintenance can be decreased.
QIANHE Company has a wide range of tensioner types, from basic Magnetic type tensioners to

servo motor tensioners.

Features:

The tensioner for reeling out the wire by servomotor system.

The system equals actual tension value and setting value that

can keep stabilized tension value in high-speed winding

One model covers a wide range of tension values for maximum efficiency and
cost-effectiveness while still giving fine control of tension adjustment.

Servo Tension Controller

Applications

-Widely used in motor coil,drive coil,transformer coils,relay coils,voice coil,inductance,resistance wire,textiles and other equipment around the system.

Key features of Type ST800-18:

• Tension Scope :3-800g
• Applied wire diameter : 0.02-0.4mm
• Tension Rod : TR-25#-200

Specification :

Main parameters

Tension bar corresponding to the tension value

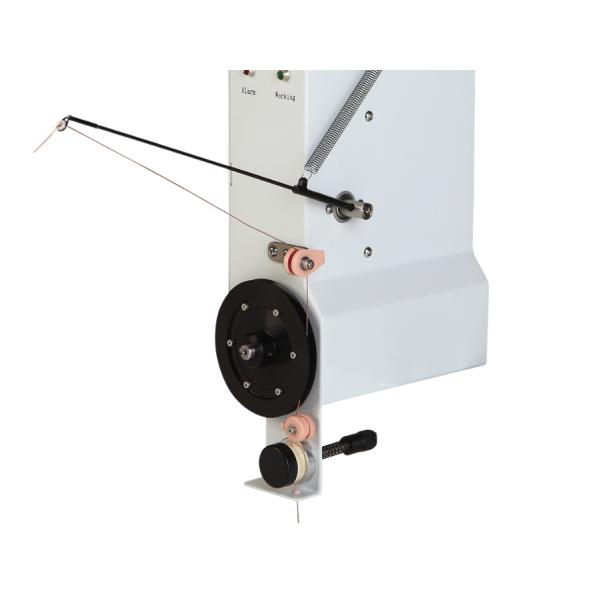

Picture Display:

Why do you choose us?

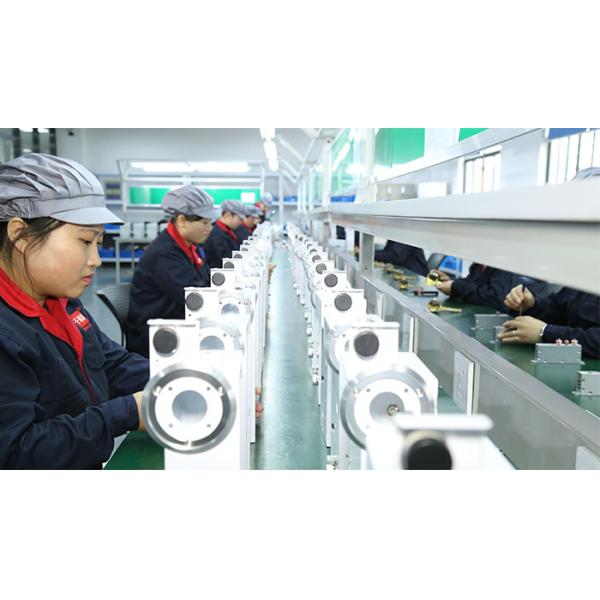

1.100% manufacturer
In hardware tools, the wire winding machine training industry has more than 10 years of
experience, we have more than and 100 skilled workers.
2. competitive price
One-stop service, from the material of die cutting process, production, QC, packaging,
delivery. We are sure we produce all the goods. And the quality is 100% rest assured. Many
customers are very happy to cooperate with us, because we can provide a more competitive
price as a factory.
3,The best choice of material
All of our goods are the best material from the best suppliers, whether the material is qualified
can be checked.
4. Quality Control
Before shipment, there are specialized personnel checks, each product in the packaging before
the inspection is qualified. We guarantee that each product shipment is perfect for sale.
5. Good service
We promise to answer your question in 24 hours.
