Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic
Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic
Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic
Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic
Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic
Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic
Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic
Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic
Specifications
Brand Name :
QIANHE
Model Number :
C20+WIS-A
Place of Origin :
Hangzhou China
MOQ :
1 set
Price :
US$150-US$350 per set
Payment Terms :
T/T, Western Union
Supply Ability :
5000 set per month
Delivery Time :
3-7 working days
Packaging Details :
Carton /box with Foam
Working Pressure :
4-8kg/C㎡
Open mouth :
3.8mm-4.2mm
Cutting Capacity :
0.02-1.0mm copper wire / plastic
Overall Length :
77.5mm
Weight :
90g
Description

Pneumatic Shear and Air Cutter or Nipper (0.1 mm -1.0 mm)

Range of application :

The product is used in Automatic coil winding machine and some other Automatic Machine

It is a general set of blades used for cutting copper wire ,steel wire,soft plastic and hard plastic .

Improved durability with brazed high-speed steel.

We provides a generous selection of blades for all wire cutting needs, including resin product

gate cuts.and automatic welding equipment.


The pneumatic shear and air cutter or nipper has a cutting capacity of 0.1 - 1.5 mm.

It has a working pressure of 0.5 mp and an efficiency of 120 cuts/min.

Function
The pneumatic shear and air cutter or nipper is fed air from the bottom of the unit, which powers the cutting head. When a material that needs cutting is positioned within the head, manually squeezing the handle on the nipper activates the shearing action of the blade. The nipper can also be used for crimping, bending, and grabbing according to specific needs.

Applications
The pneumatic shear and air cutter or nipper is ideal for environments where copper, iron,

and other hard materials need to be cut quickly and in large quantities, such as in construction, automotive, industrial settings.

Specification :

Cylinder Model Blades Model Applied cutting wire (Фmm)
Copper wire Steel Wire Soft plastic wire
CS10,C20,C40,Handheld WIS-A,WIS-B,WIS-D,WIS-F ,WIS-G,WLS/WCS/WIL 0.02-1.00 0.02-0.50 0.02-2.00
C30 WIS-A.WIS-B,WIS-C,WIS-D,WIS-F,WIS-G,WLS/WCS/WIL 0.02-1.00 0.02-0.50 0.02-2.00
C25 WIS-E 0.02-1.00 0.02-0.50 0.02-2.00
C50 WIS-E2 0.02-1.00 0.02-0.50 0.02-2.00
CS-5 ** 0.02-0.50 ** **
C45 WIB-A/B/C 0.10-2.50 0.10-1.50 0.10-3.00

Picture Show :

Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic

Air Nipper Cylinder installation Drawings

Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic

Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic

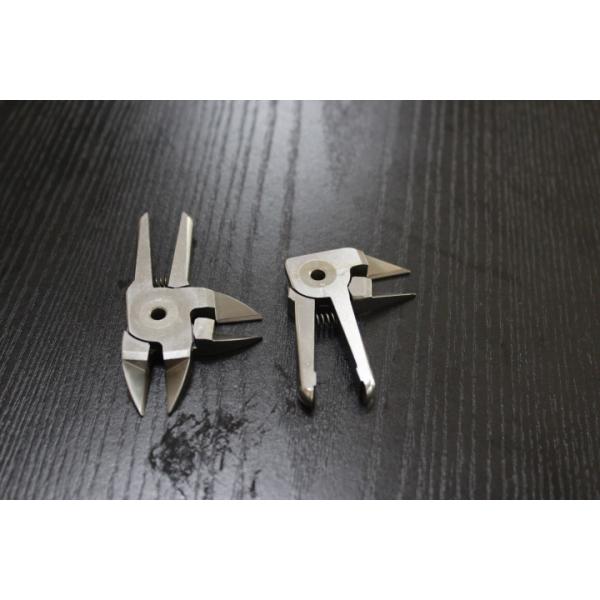

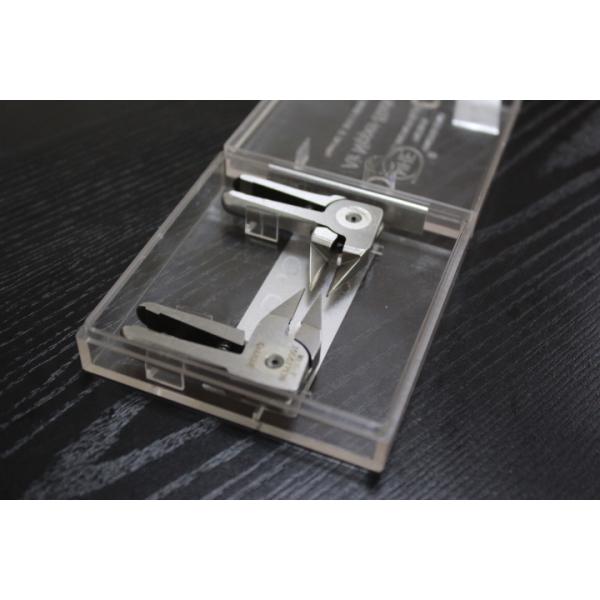

Air Nipper Blades

Automatic Coil Winding Machine Pneumatic Wire Cutter For Cutting Copper Wire / Plastic
