Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment
Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment
Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment
Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment
Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment
Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment
Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment
Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment
Specifications
Brand Name :
Qianhe
Model Number :
QH-MTASS
Place of Origin :
HANGZHOU CHINA
MOQ :
1 set
Price :
US$100-US$500
Payment Terms :
T/T, Western Union
Supply Ability :
5000 set per month
Delivery Time :
3-5 working days
Packaging Details :
Carton with Foam
Place of origin :
Hangzhou China
Color :
White and beige
Package size :
210mmX150mmX160mm
PProduct weight :
0.50 kg
Type :
Vertical type
Mertials :
Alloy resin
Function :
Tension control
Description

CNC Full Automatic Coil Winding machine Equipment Magnetic Tension Unit for wire Ф0.025-Ф0.12 mm with 5-130g tension

Hangzhou Qianhe Precision Machinery Co.,Ltd

Qianhe is a professional manufacturer for coil winding tensioner, We offer Magnetic tensioner,electronic tensioner and servo tensioner

for coil winding machine with best quality and the most competitive price in china.

there is description about Magnetic tensioner as following:

Key advantages of Magnetic wire tensioners:

These magnetic tensioners use a device containing a permanent magnet as a

non-contact method of generating a variable resistance to rotation of the main

wheel of the tensioner, thus maintaining wire tension at the set value for longer

periods than their mechanical counterparts with greatly reduced requirement for

adjustment.

  • Polished ceramic eyelets and guide rollers at each point of contact protect the insulating enamel from mechanical damage.
  • The performance of these magnetic wire tensioners is exceptional given the low cost,
  • providing outstanding value for money.
  • Captive roller on tension arm is easy to thread, eliminates chance of losing wire.

Specification :

Products Series Model Tension Scope Applied wire diameter Tension Rod
(g) (mm)
MTA Series (horizontal type) QH-MTASS 5-130 0.025-0.12 TR-1#
QH-MTA300S 14-400 0.06-0.25 TR-5#
QH-MTAS 30-800 0.08-0.40 TR-6#
QH-MTAM 300-1500 0.35-0.80 TR-16#
QH-MTAL 500-2500 0.40-1.00 TR-21#

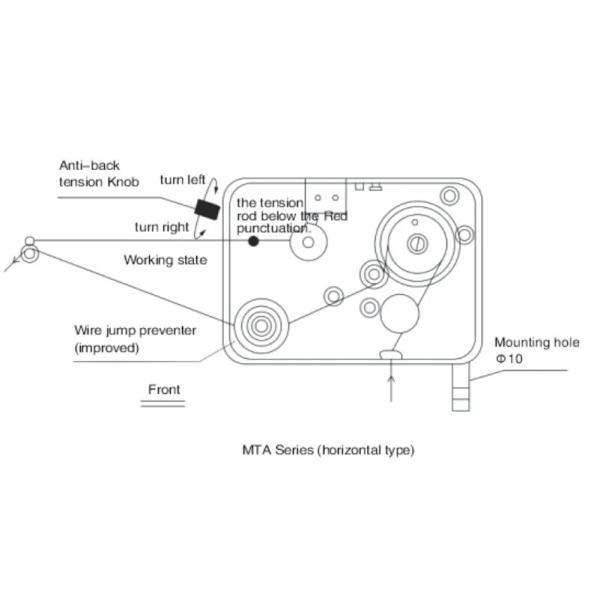

Hanging line diagram

Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment

Tensioner test conditions :

Line speed is 15M/S, instant start, stop the continuous line, stable tension in the positive

and negative 1%g.

Key features of Type MTC300S :

  • Tension Scope :5-130g
  • Applied wire diameter : 0.025-0.12
  • Tension Rod : TR-1#

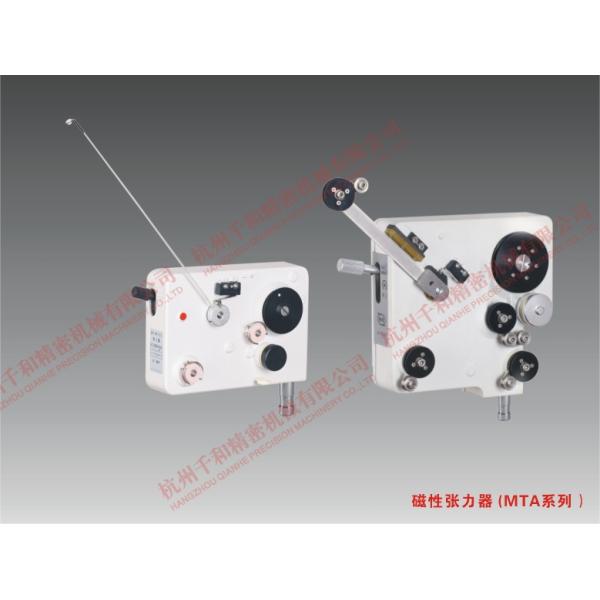

Picture show:

Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment

MTASS

Horizontal Magnetic Tensioner Unit For CNC Full Automatic Coil Winding Equipment

Coil Winding Machine Tensioner
