Specifications
Brand Name :
Qianhe
Model Number :
QH-MTAL
Place of Origin :
HANGZHOU CHINA
MOQ :
1 set
Price :
US$100-US$500
Payment Terms :
T/T, Western Union
Supply Ability :
5000 set per month
Delivery Time :
3-5 working days
Packaging Details :
Carton with Foam
Place of origin :
Hangzhou China
Color :
White and beige
Package size :
240mmX235mmX115mm
PProduct weight :
0.9 0 kg
Type :
Vertical type
Mertials :
Alloy resin
Function :
Tension control
Description

Reliable and Easy to use Magnetic Wire Tenioner for Stator Coil Winding Machine with big tension 500-2500g

Hangzhou Qianhe Precision Machinery Co.,Ltd

Qianhe is a professional manufacturer for coil winding tensioner, We offer Magnetic tensioner,electronic tensioner and servo tensioner

for coil winding machine with best quality and the most competitive price in china.

there is description about Magnetic tensioner as following:

Key advantages of Magnetic wire tensioners:

These magnetic tensioners use a device containing a permanent magnet as a

non-contact method of generating a variable resistance to rotation of the main

wheel of the tensioner, thus maintaining wire tension at the set value for longer

periods than their mechanical counterparts with greatly reduced requirement for

adjustment.

  • Polished ceramic eyelets and guide rollers at each point of contact protect the insulating enamel from mechanical damage.
  • The performance of these magnetic wire tensioners is exceptional given the low cost,
  • providing outstanding value for money.
  • Captive roller on tension arm is easy to thread, eliminates chance of losing wire.

Specification :

Products Series Model Tension Scope Applied wire diameter Tension Rod
(g) (mm)
MTA Series (horizontal type) QH-MTASS 5-130 0.025-0.12 TR-1#
QH-MTA300S 14-400 0.06-0.25 TR-5#
QH-MTAS 30-800 0.08-0.40 TR-6#
QH-MTAM 300-1500 0.35-0.80 TR-16#
QH-MTAL 500-2500 0.40-1.00 TR-21#

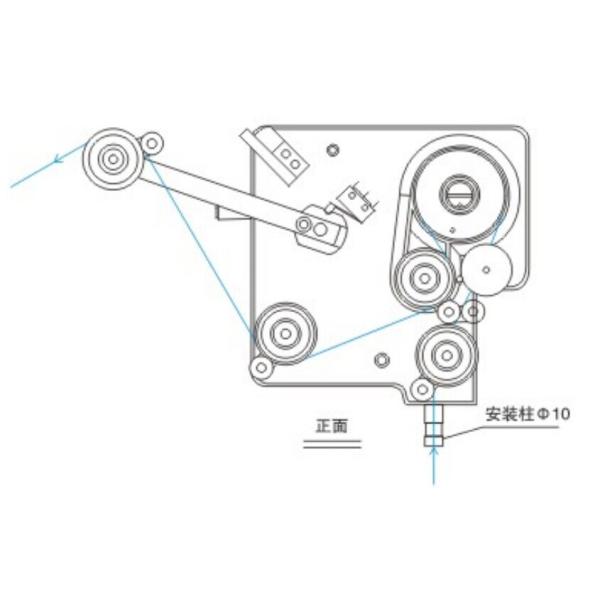

Hanging line diagram

500-2500g Electronic / Magnetic Tensioner For Stator Coil Winding Machine

Tensioner test conditions :

Line speed is 15M/S, instant start, stop the continuous line, stable tension in the positive

and negative 1%g.

Key features of Type MTC300S :

  • Tension Scope :500-2500g
  • Applied wire diameter : 0.40-1.00
  • Tension Rod : TR-21#

Picture show:

500-2500g Electronic / Magnetic Tensioner For Stator Coil Winding Machine

MTAL

500-2500g Electronic / Magnetic Tensioner For Stator Coil Winding Machine

Coil Winding Machine Tensioner
