Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²
Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²
Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²
Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²
Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²
Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²
Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²
Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²
Specifications
Brand Name :
QIANHE
Model Number :
ST400/700 Series
Place of Origin :
Hangzhou China
MOQ :
1 set
Price :
US$1500 -US$2600per set
Payment Terms :
T/T, Western Union
Supply Ability :
1000 set per month
Delivery Time :
3-15 working days
Packaging Details :
Carton with foam
Voltage :
DC24V
Power :
50W
Input Air pressure :
5kg/cm ²
Mounting hole :
Ф 16mm
Weight :
2.4kg
Product size :
240*120*70(mm)
Color :
White and Blue
Description

High speed and precsion Servo Tension with Servo Motor using in TANAC Coil Winding Machine

Servo Tensioner (ST400/700 Series)

Product Features:

  1. Feed the wire automatically ,and all using high-precision encoder servo motor,

It has the following advantages than which using stepper motor as the wire

feeding mechanism.

A,With high precision ,stable tension and fast speed ,from zero to the maximum

speed it can be done within 0.3s

B,High speed torque,so with big tension range then easy to select type

C,Low Noise

2, Tension is adjusted by electric drive ,just press the button to adjust the tension

to increase or decrease.

3, Rated maximum wire speed respectively are 8m/s ,12m/s ,20m/s , The user can

set ans maximum wire speed under the rated maximum of the selected models.

4, Display last product winding length ,by adjusting the tension value can truly ensure

the consistent winding length of each product.

5, Provide on stage tension and two stage tension control .

Main Parameters:

Voltage : DC24V

Power : 50W (8,12m/s)

Input Air pressure :5kg/cm ²

Mounting hole : Ф 16mm

Weight : 2.4kg

Product size :240*120*70(mm)

Note :

  • Please reading the product instruction carefully before using .
  • Please using the tension rod and coresponding tension spring corectly according to the tension
  • Please hang the line according to the drawing and turn off the power

Specification :

Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²

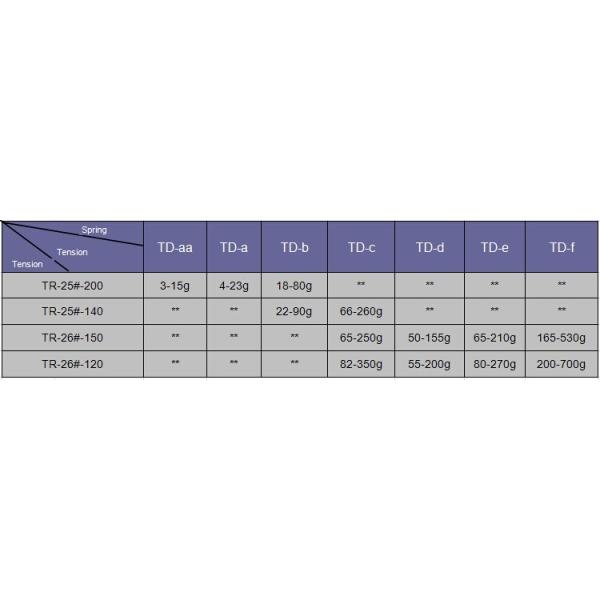

The tension rod spring with corresponding tension range:

Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²

Picture show :

Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²

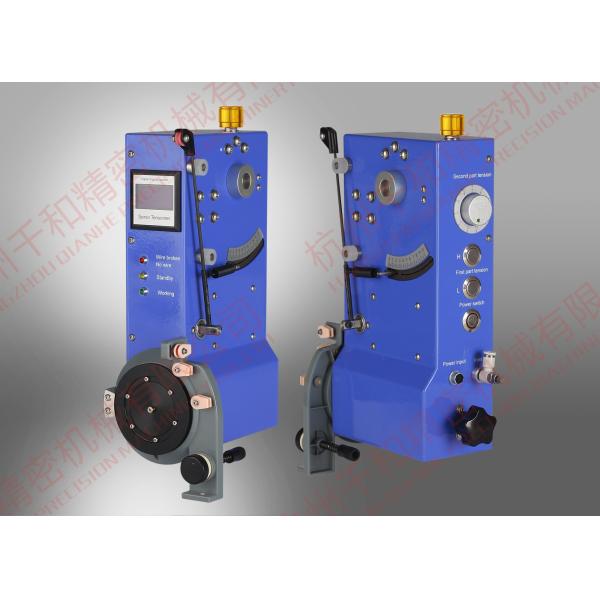

ST400-12Y1

Automatic DC24V 50W Coil Winding Tensioner Servo Motor 5kg/Cm ²

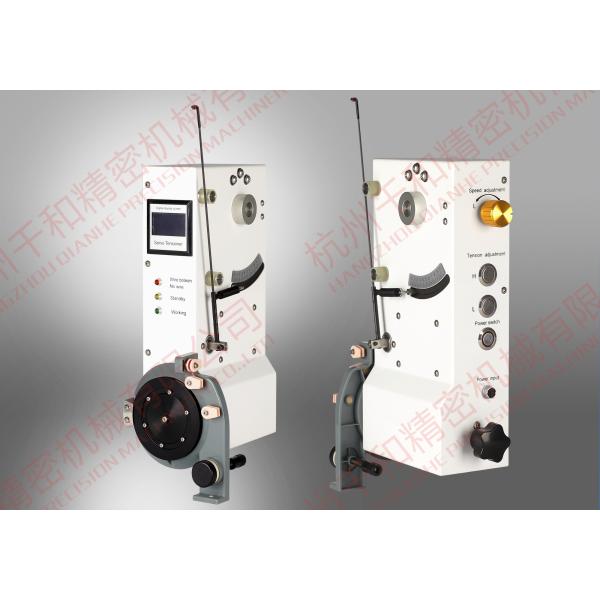

ST400-20Y2
