Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore
Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore
Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore
Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore
Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore
Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore
Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore
Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore
Specifications
Brand Name :
QINAHE
Model Number :
TC1003-3008-3006
Place of Origin :
Hangzhou China
MOQ :
20 pcs
Price :
US$12.5-US$25
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Carton with box/foam
Materials :
Ceramic
Color :
White
Hardness :
1500HV
Flexural strength :
1700N/mm²
Description

Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore

Coil winding nozzle ,tungsten carbide nozzle ,Ruby Nozzle ,Ceramic Nozzle China
manufacturer.

This Nozzle made from NMparticles of zirconia material ,with hardness 1500HV, flexural strength
1700N/mm² ,using professional equipment for precision grinding ,The curvature radius of scientific
computing for both the inlet and outlet ,ensure the safety smoothly for the wire ,effective ensure the enameled wire paint from damage .

Specification and size list :

Part.No. Model Specifications(mm)
ФD ФD1 Фd1 Фd2 L1 L
1 TC1003-3008-3006 3 0.8 0.3 1.0 6 30
2 TC1003-3010-3510 3 1.0 0.3 1.0 10 35
3 TC1005-3010-3008 3 1.0 0.5 1.0 8 30
4 TC1005-3010-3510 3 1.0 0.5 1.0 10 35
5 TC1207-3014-3008 3 1.4 0.7 1.2 8 30
6 TC1210-3020-3010 3 2.0 1.0 1.2 10 30

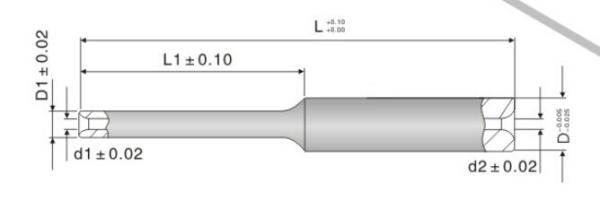

Size Drawings:
Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore

Example :TC0303-3010-3008

TC (Ceramic Tungsten Alloy )
d2 =0.3 mm : Inner bore
d1 =0.3 mm : Outlet bore
D =3.0 mm : Diameter
D1 =1.0 mm : Diameter
L =30 mm : The total length
L1 =8.0 mm : Length

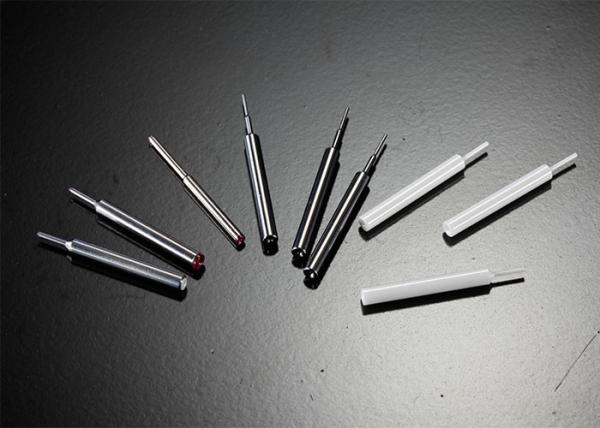

Pictures Show :

Professional Nittoku White Ceramic Coil Winding Nozzle 0.3 mm Inner Bore
Ceramic Nozzle
