Coil Winding Tension Tension Controller

Tensioner is a necessary factor for keeping consistent winding accuracy.
Selecting better tensioner provides a sophisticated winding machine with best performance.
Stabilized tensioner improves winding problems and enhances productivity. For example, stabilized tensioner causes no breaking of wire, raises operation rate, secures the value of resistance, and increases credibility of the product.
Perfect layer winding leads to material cost cutting and easy adjustment. Therefore, time and cost for machine maintenance can be decreased.
QIANHE Engineering has a wide range of tensioner types, from basic Magnetic type tensioners to servo motor tensioners.

Descriptions
The coil winding magnetic tensioner can be used for tension control during the winding process of various wires such as enameled wire, nylon wire, metal wire etc. It can be used to produce coils ,transformer ,stator , motor ,and some other products when specifically matching with the winding machine.

Comparatively speaking, this tensioner has a simple structure and low cost. It is one of the most widely used tensioners on the market.

Features
1. The quality of the magnetic tensioner is decided by two key parts: one is the magnet and the other is the bearing.
Magnet: Generally speaking, the more pairs of magnets you use, the better precision you will get. And Qianhe adopts up to 16 pairs of high strength permanent magnets. Then it can create damping through magnetic field transformation and torque changing. It has no mechanical friction as well so that it can generate long term and stable tension. On the other side, we adopt a high strength magnet so that the tension range of the tensioner can be greater and the application range can be wider.
* Bearing: Qianhe adopts NMB high quality bearing with smaller resistance and longer service life.

2. Groove design: this can effectively prevent jumping wire during production to ensure finished product quality.

3. Each set of product should be strictly tested before delivery to ensure absolute precision uniformity of the tension scale and tension degree value. When one winding machine requires multiple tensioners at the same time, this will be convenient for debugging and installation of the operators.

4. When the winding machine works normally, the tension should keep pace with back tension. Our tensioner is equipped with a manual nobble which can be used to adjust the value of back tension, so that the adjustment from the operators can be free. So the winding machine can be used for winding which should adapt to square frame or of which the winding speed changes rapidly without causing wire breaking.

5. The specification of the tension arm can be selected according to customer requirements.

Model List

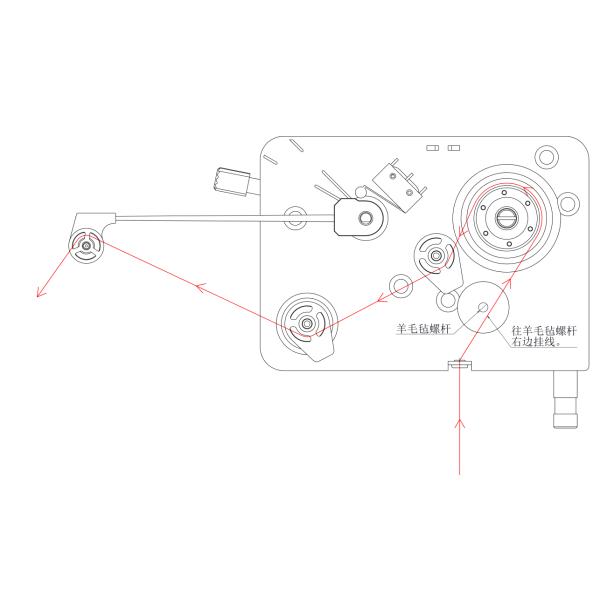

Wire pass drawing

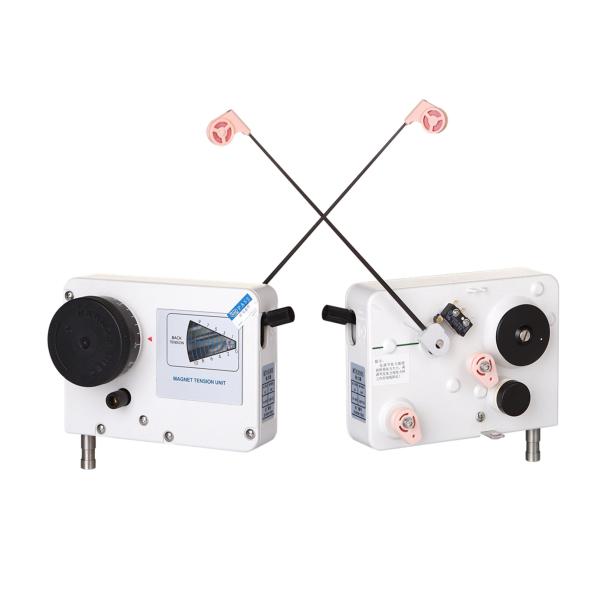

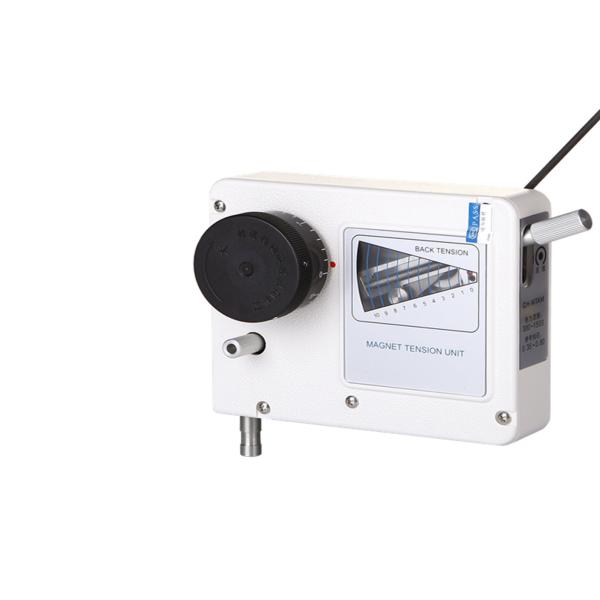

Picture show:

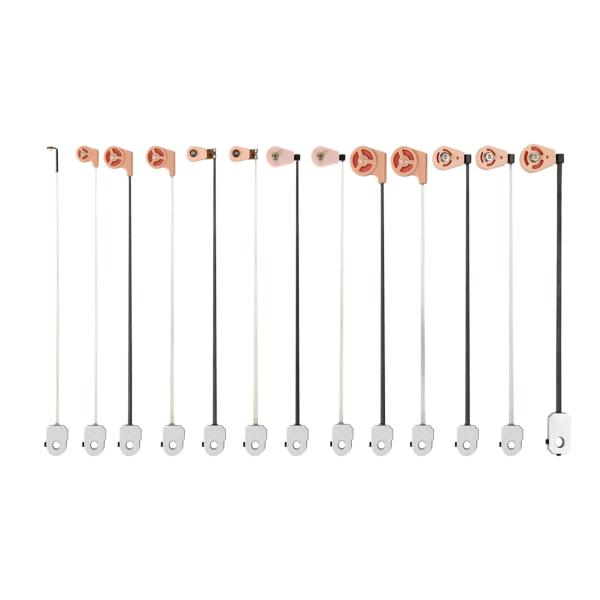

Can chose differen Tension Arm
