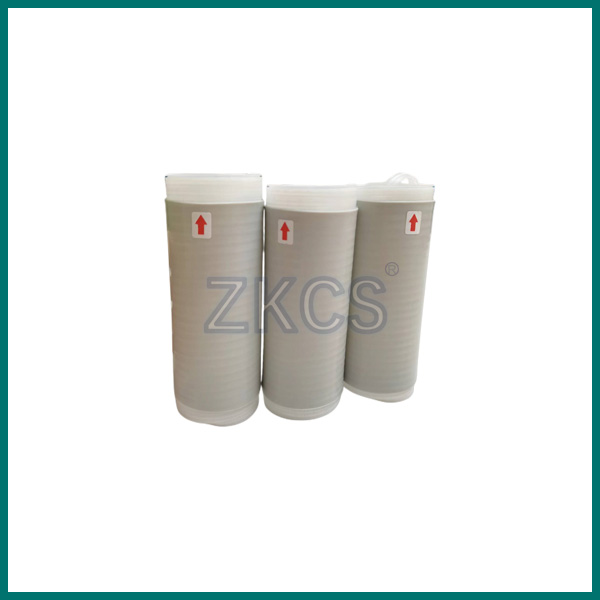

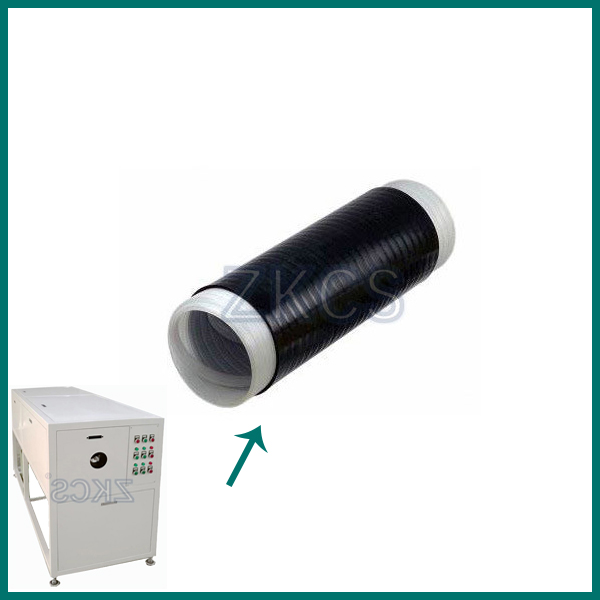

Safe Installation Cold Shrink Short Tubes For Electric Power Industry
Safe Installation Cold Shrink Short Tubes For Electric Power Industry
Safe Installation Cold Shrink Short Tubes For Electric Power Industry
Safe Installation Cold Shrink Short Tubes For Electric Power Industry
Specifications
Brand Name :
ZKCS
Model Number :
Customized
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
0.8-3.5USD/PCS
Payment Terms :
L/C, T/T
Supply Ability :
100000pcs/month
Delivery Time :
20-30days after receiving 40% deposit
Packaging Details :
50pcs or 100pcs/carton
Material :
Silicone
Color :
Black or grey
Length :
Customized
Name :
Cold Shrink Tubes
Application :
Telecom and power electric industry
Product name :
Cold Shrink Short Tubes
Free samples :
yes
Sample time :
5-7days
Description

Product name:

Safe Installation Cold Shrink Short Tubes For Electric Power Industry

Description:

Hengyang ZK industrial has been engaged with cold shrink line for many years,which has safer business

way and good quality of products,we will be your frist choice for cold shrink material supplier.

cold shrink tube is a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminum conductors.

CST EPDM Cold Shrink Tubing
Features
EPDM rubber cold shrink tube Operating temperature: -40~105ºC
Good thermal stability Voltage class: 600~1000V
Provides flexible, moisture-tight seal Halogen free, RoHS compliant
Simple installation, no tools or heat required
Seals tight,retains its resiliency and pressure even after a long time aging and exposure


Applications
Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts

Safe Installation Cold Shrink Short Tubes For Electric Power Industry

Safe Installation Cold Shrink Short Tubes For Electric Power Industry

Safe Installation Cold Shrink Short Tubes For Electric Power Industry

Safe Installation Cold Shrink Short Tubes For Electric Power Industry

Introduction:

EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.

Material technical parameters:
No Items Test method Unit Test standard Remarks
1 Hardness (Shore A) GB/T 531.1-2009 Shore A 43±5 　
2 Tensile strength GB/T 528-2009 Mpa 8±3 　
3 Break elongation GB/T 528-2009 % 800±200 　
4 Tear strength GB/T 529-2008 kN/mm 38±5 　
5 Volume resistivity GB/T 2439-2001 Ω•cm ≥1013 　
6 dielectric strength GB/T 1695-2005 MV/m ≥18 　
7 dielectric Constant(50Hz) GB/T 1693-2007 / ≤8 　
