Specifications
Brand Name :
ZKCS
Model Number :
Customized
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiation
Payment Terms :
L/C, , T/T, Western Union
Supply Ability :
100000 pcs/month
Delivery Time :
10-20day
Packaging Details :
50pcs or 100pcs/carton
Color :
Black/Grey
Material :
Liquid Silicone rubber
Thickness :
3.0mm after shrink
Type :
Cold shrink
Product name :
Black/Grey Silicone cold shrink tube
Feature :
waterproof,seal,non deformation
Performance :
water-proof
Description

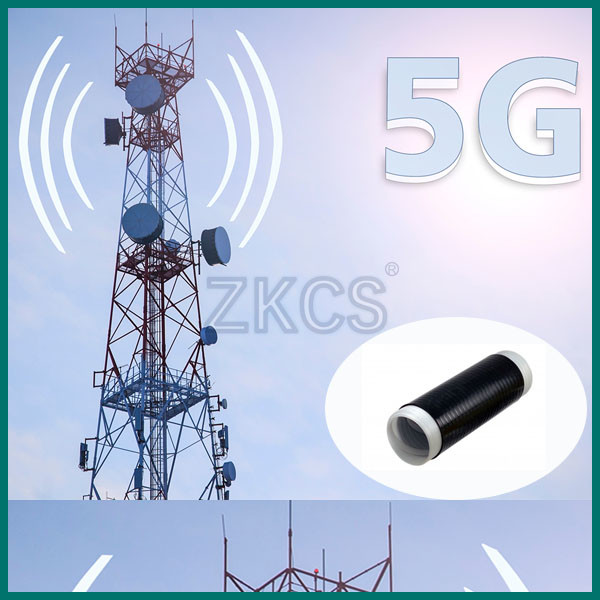

Silicone Cold Shrink Sleeves Sealing For 4G/5G telecommunication Feeder Cable Connections

Silicone Cold Shrink Sleeves Suitable scope:

Silicone cold shrink tube: applied in telecommunication industry or other electrical cable water seal usage. It is one kind of cold shrink wrap. With it’s good performance: water-proof, Acid and alkali resistance, seal, protection sleeve and low voltage seal insulation under 1kv.

Silicone Cold Shrink Sleeve size for reference:

Material Inner Diameter Length After shrink

Cable range Min .dia.(mm)

Cable range Max .dia.(mm)

Silicone 28mm 125mm 6 25
Silicone 25mm 130mm 8 19
Silicone 40mm 115mm 11.9 34
Silicone 40mm 130mm 11.9 34
Silicone 40mm 140mm 11.9 34
Silicone 45mm 130mm 13.5 39
silicone 45mm 150mm 13.5 39

Silicone Cold Shrink Sleeve parameters:

Properties Test Method Typical Value
Color / Light grey
Ultimate Tensile ASTM D412-75 9.0MPa
Ultimate Elongation ASTM D412-75 750%
Tear Resistance ASTM D624C-73 30KN/m
Fungus Resistance ASTM G21 28 days exposure No Growth
Dielectric Strength ASTM D149-75 @1.75 Original 21KV/m
7days in water at 90℃ 20.5KV/m
Volume resistance ASTM D257 3.4×1015Ohm.cm

All values are averages and are not intended for specification purposes.

Silicone Cold Shrink Sleeve with mastic inside Features:

1. Continuous operating temperature:-60°C~200°C
2. Good low temperature brittleness, can be installed in the Arctic area, no broken;

3. Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water

4. Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
5. Excellent tear resistance
6. Simple installation, requires no special heating tools , and adhesive to seal the connections
7. Standard color: black

Silicone Cold Shrink Sleeves Applicable Field Reference :

Silicone Cold Shrink Sleeves Sealing For 4G/5G telecommunication Feeder Cable Connections

Silicone Cold Shrink Sleeves Sealing For 4G/5G telecommunication Feeder Cable Connections

Silicone Cold Shrink Tubing with Mastic inside operating steps:

Silicone Cold Shrink Sleeves Sealing For 4G/5G telecommunication Feeder Cable Connections

FAQ

1.What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube, cold shrink tubing and silicone cable accessories kit in telecommunication and electrical power industry.

2. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.

3. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Shipment: express, sea and air shipping.
