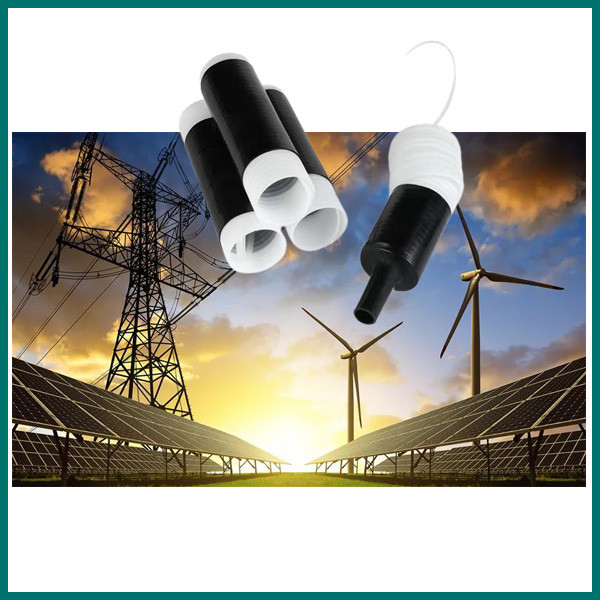

Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions
Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions
Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions
Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions
Specifications
Brand Name :
ZKCS
Model Number :
Customized
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
0.8-2.2USD/PCS
Payment Terms :
L/C, T/T
Supply Ability :
100000pcs/month
Delivery Time :
20-30days after receiving 40% deposit
Packaging Details :
50pcs or 100pcs/carton
Material :
Silicone
Color :
Black or grey
Length :
Customized
Name :
Cold Shrink Tube
Application :
Telecom and power electrical industry
Product name :
cold shrink retractable tube for cell tower
Packing :
Carton
Free samples :
yes
Description

Product name:

Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions

Description:

Cold shrink tubing is used to insulate wires, connections, joints and terminals in electrical work. It can also be used to repair wires, bundle wires together, and to protect wires or small parts from minor abrasion. It needs storage in controlled environments with temperatures not exceeding 43°C.

Features:

Simple and quick installation, without tools.
Tighten the seal,
No mastic, tape or mold mass is needed.
High resistance to fungi, acid, alkalis, ozone and UV radiation.
Easy to uninstall again.


Applications
Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts

Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions

Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions

Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions

Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions

Silicone 1KV Cold Shrink Pre-Stretched Tubes For Power Electrical And Wire Connectcions

Introduction:

EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.

Material technical parameters:
No Items Test method Unit Test standard Remarks
1 Hardness (Shore A) GB/T 531.1-2009 Shore A 43±5 　
2 Tensile strength GB/T 528-2009 Mpa 8±3 　
3 Break elongation GB/T 528-2009 % 800±200 　
4 Tear strength GB/T 529-2008 kN/mm 38±5 　
5 Volume resistivity GB/T 2439-2001 Ω•cm ≥1013 　
6 dielectric strength GB/T 1695-2005 MV/m ≥18 　
7 dielectric Constant(50Hz) GB/T 1693-2007 / ≤8 　
