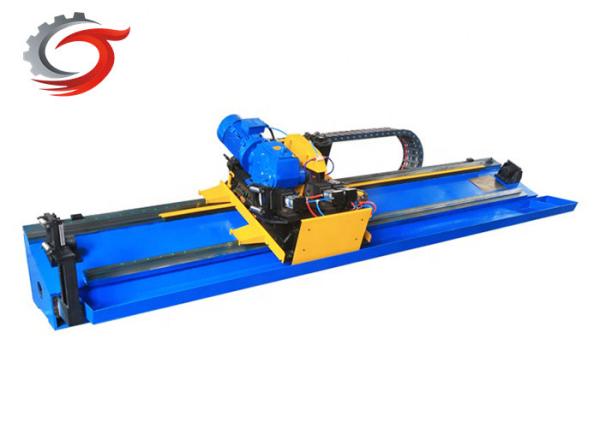

Carbon Steel 114mm Cold Cut Pipe Saw 380v Cold Saw Machine
Carbon Steel 114mm Cold Cut Pipe Saw 380v Cold Saw Machine
Specifications
Brand Name :
JCCS
Model Number :
JCCS-76-144
Place of Origin :
HeBei China
MOQ :
1 set of
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Set/Sets per Month
Delivery Time :
15-30 work days
Packaging Details :
Usually a high quality steel square tube making machine is loaded in a container. Depends on the size and weight of the machine.
Product name :
Cold Cutting Saw
Origin :
China
Applicable industries :
Building material stores, manufacturing plants, mechanical repair shops, construction works, energy and mining
Core components :
PLC, bearing, gear
Type :
Pipe production line
Tube :
Carbon steel
Features :
Clean cut
Material/Metal Finishing :
Stainless steel, carbon steel, aluminum
Description

Automatic Tube Cold Cut Fly Sawing Tube Machine

Introduction
The double saw blade cold cutting flying saw can save the saw blade and reduce the cost of using the saw blade. The cold cutting flying saw blade cuts through the profile of the pipe, and the cost of two small saw blades is much lower than the price of a large saw blade.

Material Q195 Q235 SPCC

Cutting range

 Round tube:MAX114mm thick:0.5～4.0mm
Square tube:MAX90×90mm thick:0.5～4.0mm
Rectangular tube:MAX 50×90mm thick:0.5～4.0mm
Production speed 80m/min(length 6 meter,dia.≤25mm)
Feeding direction
Operation height 800mm
Power supply AC380V,3PH,50HZ

Features

1. Equipped with adjustable cooling spray pipeline to flush the impurities and iron filings on the saw blade and clamping block;

2. Sawing method: saw blade and feed are adjustable, that is to say, the speed of the feed servo motor is variable, and the speed of the saw blade is variable, so that the utilization rate of the saw blade is greatly improved; and the saw blade wear protection system is provided.

3. The saw blade is equipped with a steel brush device to remove iron filings on the saw blade when rotating;

Carbon Steel 114mm Cold Cut Pipe Saw 380v Cold Saw Machine

Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
