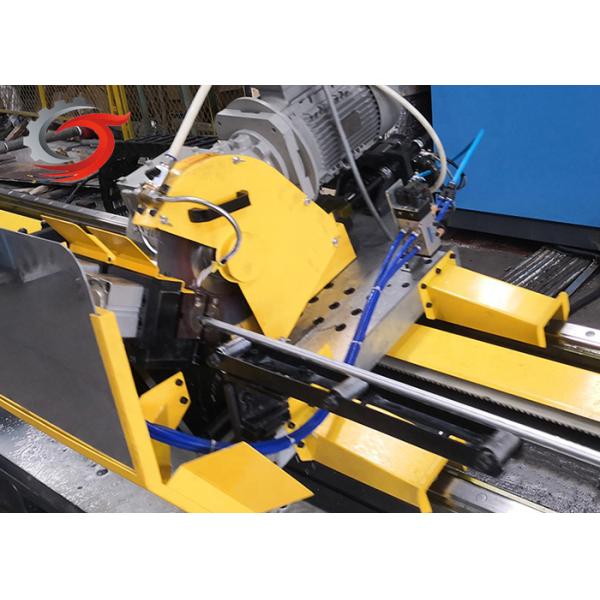

ERW Cold Saw Pipe Cutting Machine
ERW Cold Saw Pipe Cutting Machine
Specifications
Brand Name :
JCCS
Model Number :
JCCS-76-144
Place of Origin :
HeBei China
MOQ :
1 set of
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Set/Sets per Month
Delivery Time :
15-30 work days
Packaging Details :
Usually a high quality steel square tube making machine is loaded in a container. Depends on the size and weight of the machine.
Product name :
Cold Cutting Machine
Origin :
China
Applicable industries :
Manufacturing Plant, Construction Work
Core components :
PLC, bearing, gear
Type :
Tube forming machine
Tube :
Carbon steel
Main selling point :
Long lasting,High precision and high productivity
Tube length :
Custom made
Description

CNC ERW Welded Pipe Production Line High Speed Cold Cut Saw Tube Cut Fly Saw

Introduction

The machines are lightweight and driven by pneumatic, electric or hydraulic motors and can be controlled by a single operator. Bevel cutters feature high metal removal rates, are easy to operate, and are robust and compact.

material Q195 Q235 SPCC

Cutting range

 Round tube:MAX114mm thick:0.5～4.0mm
Square tube:MAX90×90mm thick:0.5～4.0mm
Rectangular tube:MAX 50×90mm thick:0.5～4.0mm
Production speed 80m/min(length 6 meter,dia.≤25mm)
Cutting length 1500-99999mm
Length tolerance ±1.5mm(speed diviation not more than 2%)；
Feeding direction
Operation height 800mm
Cutting burr height Max:0.25mm；
Power supply

AC380V,3PH,50HZ

Mechanical length 5420*1480*1380mm(as per final drawing)

Motor list

 Drive:18.5KW PHASE servo motor
feed: 3.3KW PHASE servo motor
saw: 22KW PHASE servo motor
Linear guide Hiwin Chinese Taiwan
Clamp hydraulic pressure
Clamp block model tape shape to avoid scratching the steel pipe
Oil supply system Auto oil filling
Saw blade High speed steel
main shaft gearbox Special made
Gear rack KH from Chinese Taiwan
Cable protection Drag chain
Carriage protection Safety bumpers for carriage are equipped at both ends
Equipment document User’s manual & electrical diagram

Features

1. Smooth operation and high cutting precision
2. Noise reduction and safety
3. Superior cutting edge, no burr, cost saving
4. Low noise, no burr for cutting, safer operator, saving cost and material.
5. Automatic, intelligent and pollution-free operation
6. New function: remote control system to solve problems in time.

ERW Cold Saw Pipe Cutting Machine

Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
