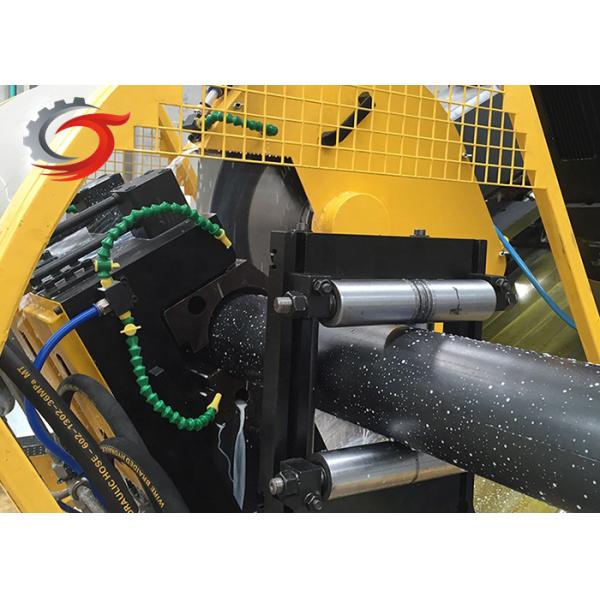

Circular Metal Sawing Machine
Circular Metal Sawing Machine
Specifications
Brand Name :
JCCS
Model Number :
JCCS-76-144
Place of Origin :
HeBei China
MOQ :
1 set of
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Set/Sets per Month
Delivery Time :
15-30 work days
Packaging Details :
Usually a high quality steel square tube making machine is loaded in a container. Depends on the size and weight of the machine.
Product name :
Cold Cutting Machine
Origin :
HeBei China
Applicable industries :
Building material stores, manufacturing plants, mechanical repair shops, construction works, energy and mining
Core components :
PLC, engine, bearing, gearbox, pressure vessel, gear, pump
Machine Type :
Steel pipe cold saw
Tube :
Carbon steel
Main selling point :
Long lasting,High precision and high productivity
Pipe shape :
Round/square/rectangular tube
Description

Automatic feeding circular cold saw for cutting metal materials CNC flying saw cutting

Introduction

The equipment is designed to enable fast blade changes, minimize downtime and ensure smooth and uninterrupted operation. Synchronization is achieved by using an AC servo motor control system for fastest response time and best results.

material Q195 Q235 SPCC

Cutting range

 Round tube:MAX114mm thick:0.5～4.0mm
Square tube:MAX90×90mm thick:0.5～4.0mm
Rectangular tube:MAX 50×90mm thick:0.5～4.0mm
Production speed 80m/min(length 6 meter,dia.≤25mm)
Cutting length 1500-99999mm
Length tolerance ±1.5mm(speed diviation not more than 2%)；
Feeding direction
Operation height 800mm
Cutting burr height Max:0.25mm；
Power supply

AC380V,3PH,50HZ

Mechanical length 5420*1480*1380mm(as per final drawing)

Motor list

 Drive:18.5KW PHASE servo motor
feed: 3.3KW PHASE servo motor
saw: 22KW PHASE servo motor
Linear guide Hiwin Chinese Taiwan
Clamp hydraulic pressure
Clamp block model tape shape to avoid scratching the steel pipe
Oil supply system Auto oil filling
Saw blade High speed steel
main shaft gearbox Special made
Gear rack KH from Chinese Taiwan
Cable protection Drag chain
Carriage protection Safety bumpers for carriage are equipped at both ends
Equipment document User’s manual & electrical diagram

Features

1. The sawing method of cold milling is adopted. The sawing process generates very little heat, which avoids the change of internal stress and material structure at the cut section. At the same time, the saw blade has a small pressure on the steel pipe, which will not cause the pipe wall orifice. deformed.
2. The quality of the cut end face of the workpiece processed by the high-speed steel cold cutting saw is good
3. The service life is long. The saw blade grinding machine can be used to grind the teeth for many times. The service life of the polished saw blade is the same as that of the new saw blade. Improve production efficiency and reduce costs.

Circular Metal Sawing Machine

Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
