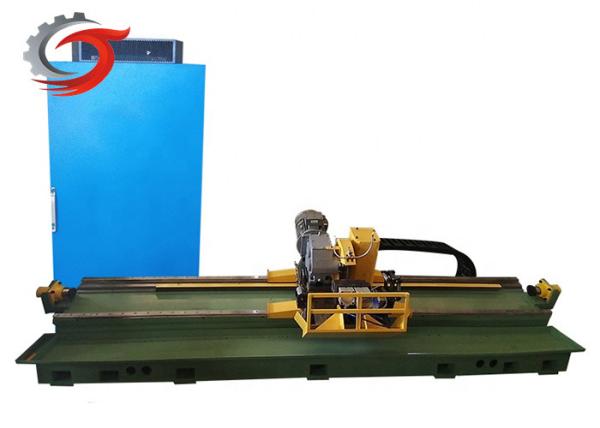

Double Head Cold Saw Pipe Cutting Machine 50x90mm Flying Saw Cutter
Double Head Cold Saw Pipe Cutting Machine 50x90mm Flying Saw Cutter
Specifications
Brand Name :
JCCS
Model Number :
JCCS-76-144
Place of Origin :
HeBei China
MOQ :
1 set of
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Set/Sets per Month
Delivery Time :
15-30 work days
Packaging Details :
Usually a high quality steel square tube making machine is loaded in a container. Depends on the size and weight of the machine.
Product name :
Cold Cutting Machine
Origin :
China
Applicable industries :
Building material stores, manufacturing plants, mechanical repair shops, construction works, energy and mining
Core components :
Gearbox, motor
Machine Type :
Steel pipe cold saw
Tube :
Carbon steel
Main selling point :
High precision and high productivity
Pipe shape :
Round/square/rectangular tube
Description

Double head cutting pipe saw ERW steel pipe making machine cold cutting flying saw

Introduction

Single and multiple head designs are available for small or large products, or reshaped into square or rectangular products. Blade surface speed is adjustable in a 5:1 speed range for optimum cutting speeds for high speed steel or carbide blades. Flying friction saws are available for very fast cutting cycles where end condition is not critical or a secondary end finish is required.

material Q195 Q235 SPCC

Cutting range

 Round tube:MAX114mm thick:0.5～4.0mm
Square tube:MAX90×90mm thick:0.5～4.0mm
Rectangular tube:MAX 50×90mm thick:0.5～4.0mm
Operation height 800mm
Cutting burr height Max:0.25mm；
Power supply

AC380V,3PH,50HZ

Mechanical length 5420*1480*1380mm(as per final drawing)

Motor list

 Drive:18.5KW PHASE servo motor
feed: 3.3KW PHASE servo motor
saw: 22KW PHASE servo motor
Linear guide Hiwin Chinese Taiwan
Clamp block model tape shape to avoid scratching the steel pipe
main shaft gearbox Special made
Cable protection Drag chain
Equipment document User’s manual & electrical diagram

Features

1. Smooth operation and high cutting precision
2. Noise reduction and safety
3. Superior cutting edge, no burr, cost saving
4. Low noise, no burr for cutting, safer operator, saving cost and material.
5. Automatic, intelligent and pollution-free operation
6. New function: remote control system to solve problems in time.

Double Head Cold Saw Pipe Cutting Machine 50x90mm Flying Saw Cutter

Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
