Remote Tube Cold Saw Carbon Steel High Speed CNC Cutting Machine
Remote Tube Cold Saw Carbon Steel High Speed CNC Cutting Machine
Specifications
Brand Name :
JCCS
Model Number :
JCCS-32
Place of Origin :
HeBei China
MOQ :
1 set of
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Set/Sets per Month
Delivery Time :
15-30 work days
Packaging Details :
Usually a high quality steel square tube making machine is loaded in a container. Depends on the size and weight of the machine.
Product name :
Cold Cutting Flying Saw
Origin :
HeBei China
Applicable industries :
Building material stores, manufacturing plants, mechanical repair shops, construction works, energy and mining
Core components :
PLC, bearing, gear
Type :
Pipe cutting machine
Tube :
Carbon steel
Main selling point :
Remote control
Description

High Precision CNC Flying Cold Saw Pipe Cutting Machine High Speed Cold Cutting Pipe Mill

Introduction

Product for cutting steel tubes into burr-free fly-cold saws with a length tolerance of +/- 0.5 mm. Its purpose is to cut pipes to shorter lengths. This machine is used to cut smaller pipe lengths that were not previously possible with in-line mills.

material Q195 Q235 SPCC

Cutting range

 Round tube:MAX53mm thick:0.5～2.5mm
Square tube:MAX40×40mm thick:0.5～2.5mm
Operation height 750mm
Cutting burr height Max:0.25mm；
Mechanical length 4420*1280*1280mm(as per final drawing)

Motor list

 Drive:15KW PHASE servo motor
feed: 1.8KW PHASE servo motor
saw: 11KW Siemens AC motor
Linear guide Hiwin Chinese Taiwan
Gear rack KH from Chinese Taiwan
Carriage protection Safety bumpers for carriage are equipped at both ends
Equipment document User’s manual & electrical diagram


Features

1. The sawing method of cold milling is adopted, and the sawing process generates little heat, avoiding the change of internal stress and material structure at the incision section.
2. The quality of the cut end face of the workpiece processed by the high-speed steel cold cutting saw is good
3. The service life is long. The saw blade grinding machine can be used to grind the teeth for many times. The service life of the polished saw blade is the same as that of the new saw blade. Improve production efficiency and reduce costs.

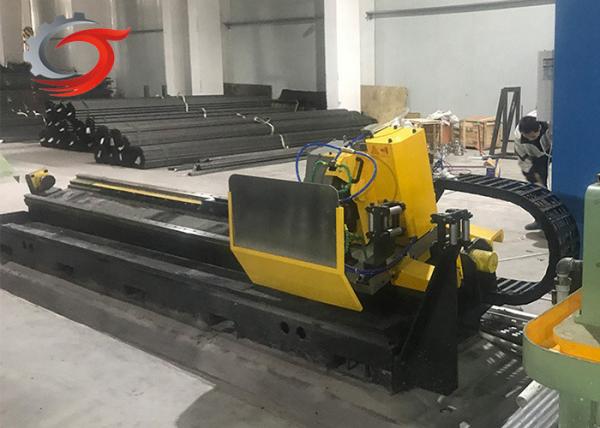

Remote Tube Cold Saw Carbon Steel High Speed CNC Cutting Machine

our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
