Meat Seafood Storage System Freezer Cold Room And Freezer Room - 45 ℃ ~ + 15 ℃
Meat Seafood Storage System Freezer Cold Room And Freezer Room - 45 ℃ ~ + 15 ℃
Specifications
Brand Name :
ColdLink
Certification :
ISO9001
Place of Origin :
China, Shanghai
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C or Negotiation
Supply Ability :
1500 unit/month
Delivery Time :
7days
Packaging Details :
Wooden Packages
Thickness of panel :
50mm/75mm/100mm/120mm/150mm/200mm
Cooling system :
Air cooled or Water cooled
Material :
Color Steel/ Galvanized Steel / Stainless Steel
Voltage :
Customized
Cooling Capacity :
Customized
Feature :
Container
Key Selling Points: :
Competitive Price
Description

Customized Freezer Room Manufacturer Cold Storage System from -45℃~+15℃

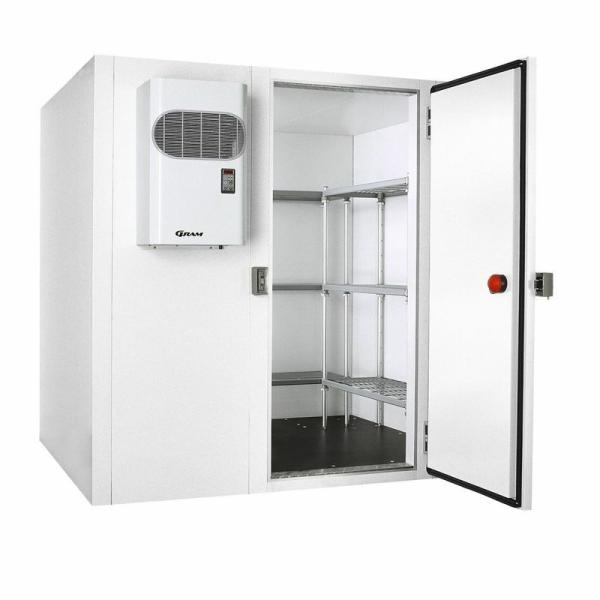

Cold room

ColdLink cold room consists of cold room panel (PU sandwich panel 50/100/120/150mm thickness), cold room door(Hinged door or Sliding door), condensing unit, evaporator (air cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration fittings.

Design principle

1. What is the application of the cold room?
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
2. What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
3. Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with bigger evaporation area.

Application of a Walk-In Cold Room

Cold Room Goods Temperature Range
Processing room 0~10℃
Fruit, vegetable, dry food 0C~-5℃
Chemical material 0C~-5℃
Ice freezer room -5~-10℃
Sea food,meat and seafood -18~-25℃
Deep freezer -25℃~-40℃

Cold Room Panel

We use fluoride-free material, it is more environment-friendly. Our cold room panels can reach fireproof level B2.
Polyurethane panel is foamed by high pressure with density of 38-42 kg/m3. So the thermal insulation will be good.

Panel thickness(mm) Operating Temperature
50 5℃ or above
75 -5℃ or above
100 -25℃ or above
150 -45℃ or above
200 -55℃ or above

Our services


We will offer you:
1. Good quality & price.
2. Customization.
3. Door-to-door service under a paid partnership.
4. Visit to our factory.
5. Inspection from your side any time during the production process or before loading.
