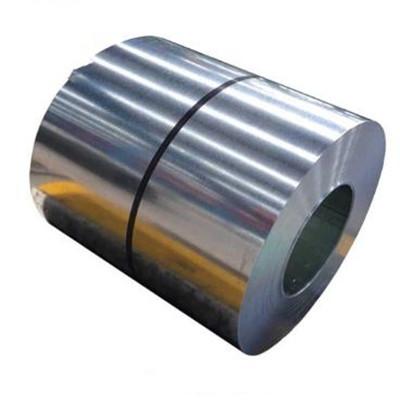

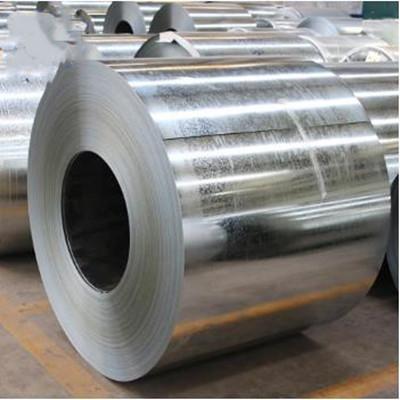

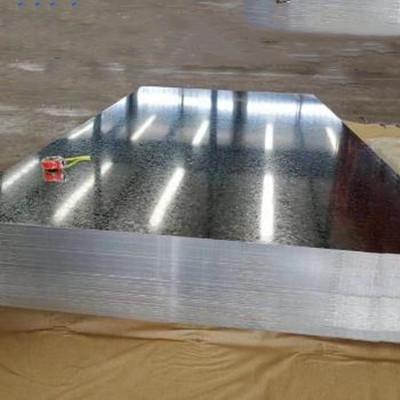

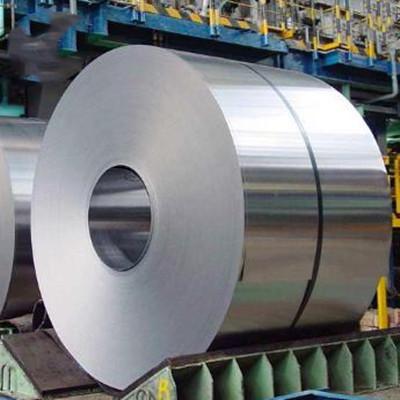

0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
Specifications
Brand Name :
OEM/ODM
Model Number :
SGCC
Certification :
ISO
Place of Origin :
CHINA
MOQ :
2 tons
Price :
negotiable based on the quantity
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 tons per month
Delivery Time :
within 10 days after received the advance
Packaging Details :
Standard seaport packing or as the custom request
Zinc Coating :
30-275g/m2
Color :
Silver
Width :
30mm to 1250mm, 30mm to 1250mm
Thickness :
0.12-6.0 mm
Spangle :
Big,Regular,Small,Zero
Coil Weight :
3-8MT/Coil or as your request
Application :
Gutters ,Auto parts ,Electrical Appliances,Purling, Vending Machine,Refrigerator,Ovens,For Prepainted ,Roof Sheet
Description
0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
Standard
AISI, ASTM, BS, DIN, GB, JIS
Type
Hot Dipped
Surface
Galvanized Coated
Surface Structure
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Zinc Coating
15-275g/m2
Thickness
0.12mm-4.0mm
Width
600mm-1250mm
Coil Weight
3-5 Tons or Required
Coil ID
508mm/610mm
Coating
PE/PVDF/HDP/SMP
Top Painting
10-35 Microns
Back Painting
5-35 Microns
MOQ
25 Tons(1 20ft FCL)
Payment Term
T/T(30% Deposit+70% )
Product Introduction
Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.
Galvanized Category
Hot dip galvanizing (HDGI):it is one of the common galvanizing methods. The process is to completely dip iron or steel into molten zinc.
Electro-galvanizing(EGI):it is to remove the oil, pickle, and then put into the solution of zinc salt by electrolysis equipment, and connect the negative electrode of the electrolysis equipment, place the zinc plate on the opposite side of the pipe fitting, and connect When the positive electrode of the electrolysis device is turned on, a layer of zinc is deposited on the pipe by the directional movement of the current from the positive electrode to the negative electrode, and the cold-plated pipe member is processed and then galvanized.
Main Features Of Products
01.Anticorrosive:13 years in heavy industrial areas,50 years in the ocean,104 years in the suburbs and 30 years in cities.
02.Cheap:The cost of hot-dip galvanizing is lower than that of other coatings.
03.Reliable:The zinc coating is metallurgically bonded to the steel and forms part of the steel surface,so the coating is more durable.
04.Strong toughness:The galvanized layer forms a special metallurgical structure that can withstand mechanical damage during transportation and use.
05.Comprehensive protection:Every part of the plated piece can be galvanized,and is fully protected even in depressions,sharp corners,and hidden places.
06.Save time and energy:Galvanizing process is faster than other coating methods.

0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil

0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil

0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil

0.12-6.0 Mm DX51D Z40 Zinc Coating Quality Galvanized Steel Coil
