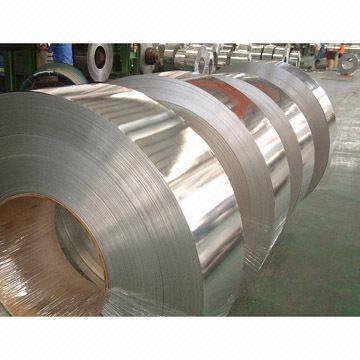

SUS304 cold rolled steel coil for cabinets, indoor pipes, water heaters, boilers, bathtubs
SUS304 cold rolled steel coil for cabinets, indoor pipes, water heaters, boilers, bathtubs
SUS304 cold rolled steel coil for cabinets, indoor pipes, water heaters, boilers, bathtubs
SUS304 cold rolled steel coil for cabinets, indoor pipes, water heaters, boilers, bathtubs
SUS304 cold rolled steel coil for cabinets, indoor pipes, water heaters, boilers, bathtubs
SUS304 cold rolled steel coil for cabinets, indoor pipes, water heaters, boilers, bathtubs
Specifications
Place of Origin :
CHINA
Brand Name :
STTOY
MOQ :
1 ton
Packaging Details :
Pallet(required by the customers' requirements)
Delivery Time :
20-60 working day
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
100 tons
Description

SUS304 cold rolled steel coil for cabinets, indoor pipes, water heaters, boilers, bathtubs

SUS304 cold rolled steel coil with thickness:1.0-3.0mm width: 200-1219mm HV160-400 Surface:2B BA

Description:

With good corrosion resistance, heat resistance, low temperature strength and mechanical properties, punching and bending thermal processing, non-hardening heat treatment, non-magnetic.

Applications:

Domestic appliances, cabinets, indoor pipes, water heaters, boilers, bathtubs, auto parts, medical equipment, building materials, chemical, food industry, agriculture, ship parts.

Specifications:

Chemical composition:

Name

C

Si

Cr

Mn

Ni

P

S

Cu

304

≤0.07

≤1.00

18.00-20.00

≤2.00

8.00-11.00

≤0.035

≤0.030

1.00-3.00

Mechanical Properties :

σs

σb

δ

Hardness

E

n

r00

r45

r90

ρ

263.80 MPa

625.55 Mpa

46.70%

HB ≤187 HRB≤90 HV ≤200

194020 MPa

0.193

0.936

1.123

0.909

7.93 g·cm-3

　


　　 　
Thinckness:1.0-3.0mmWidth: 200-1219mm

Hardness: HV160-400

width Tolerance:±0.02mm

surface: good arc edge,bright, no scraping wire

The commom size:

0.1*160mm 0.1*300mm 0.1*140mm

0.06*200mm 0.06*300mm 0.06*400mm

0.2*20mm, 0.2*30mm 0.2*40mm

0.2*2mm 0.2*3mm 0.2*4mm

other sizes as your requirements to produce.

Density:

Steel Grade

Density(g/cm3)

201,202,301,302,303, 304,304L,305,321

7.93

316,316L,316S,347,309S,310,310S

7.98

405,410,420

7.75

409,430,434

7.7

Stainless steel theoretical weight formula:

Weight (kg) = thickness (mm) × width (mm) x length (mm) × density values

Stainless steel gravity:

Chromium stainless take 7.75 ton / M3

Chrome-nickel stainless steel take 7.93 ton / M3

Iron take 7.87 ton / M3

Competitive Advantage:

First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
