HV160-400 and 2B BA SUS309S cold rolled steel coil for boilers and industrial furnace
HV160-400 and 2B BA SUS309S cold rolled steel coil for boilers and industrial furnace
HV160-400 and 2B BA SUS309S cold rolled steel coil for boilers and industrial furnace
HV160-400 and 2B BA SUS309S cold rolled steel coil for boilers and industrial furnace
HV160-400 and 2B BA SUS309S cold rolled steel coil for boilers and industrial furnace
HV160-400 and 2B BA SUS309S cold rolled steel coil for boilers and industrial furnace
HV160-400 and 2B BA SUS309S cold rolled steel coil for boilers and industrial furnace
HV160-400 and 2B BA SUS309S cold rolled steel coil for boilers and industrial furnace
Specifications
Place of Origin :
CHINA
Brand Name :
STTOY
Model Number :
300 series cold rolled stainless steel coil
MOQ :
1 ton
Packaging Details :
Pallet(required by the customers' requirements)
Delivery Time :
20-60 working day
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
100 tons
Description

HV160-400 and 2B BA SUS309S cold rolled steel coil for boilers and industrial furnace

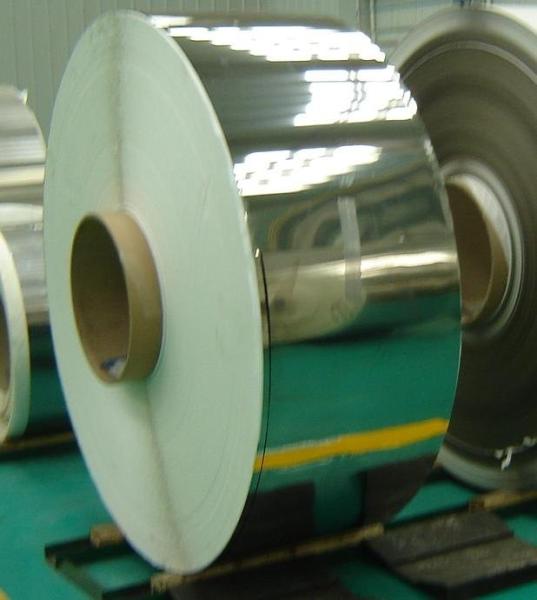

SUS309S cold rolled stainless steel coil with thickness:1.0-3.0mm width: 200-1219mm HV160-400 Surface:2B BA

Description:

309S stainless steel plate, which is a kind of heat-resistant stainless steel and can withstand repeated heating below 980 ℃, has high temperature strength and oxidation resistance, carburization resistance performance.Can withstand repeated heating 980 ℃, high temperature strength and oxidation resistance, anti-carburizing performance.

Applications:

Widely used in boilers, energy (nuclear power, thermal power, fuel cells), industrial furnace, incinerator furnace, chemical, petrochemical, and other important areas.

Specifications:

Chemical composition:

Name

C

Si

Mn

Cr

Ni

S

P

309S

≤0.08

≤1.0

≤2.0

22-24

12-15

≤0.03

≤0.045


Thinckness:1.0-3.0mm

Width: 200-1219mm

Hardness: HV160-400

width Tolerance:±0.02mm

surface: good arc edge,bright, no scraping wire

The commom size:

0.1*160mm 0.1*300mm 0.1*140mm

0.06*200mm 0.06*300mm 0.06*400mm

0.2*20mm, 0.2*30mm 0.2*40mm

0.2*2mm 0.2*3mm 0.2*4mm

other sizes as your requirements to produce.

Density:

Steel Grade

Density(g/cm3)

201,202,301,302,303, 304,304L,305,321

7.93

316,316L,316S,347,309S,310,310S

7.98

405,410,420

7.75

409,430,434

7.7

Stainless steel theoretical weight formula:

Weight (kg) = thickness (mm) × width (mm) x length (mm) × density values

Stainless steel gravity:

Chromium stainless take 7.75 ton / M3

Chrome-nickel stainless steel take 7.93 ton / M3

Iron take 7.87 ton / M3

Competitive Advantage:

First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
