Specifications
Place of Origin :
CHINA
Brand Name :
STTOY
MOQ :
1 ton
Packaging Details :
Pallet(required by the customers' requirements)
Delivery Time :
20-60 working day
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
100 tons
Model Number :
Alloy cold rolled steel strip
Description

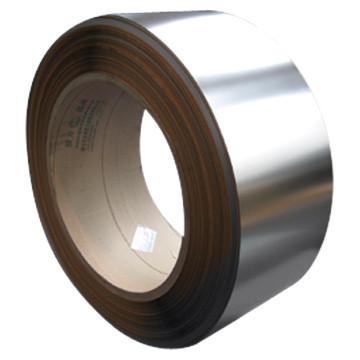

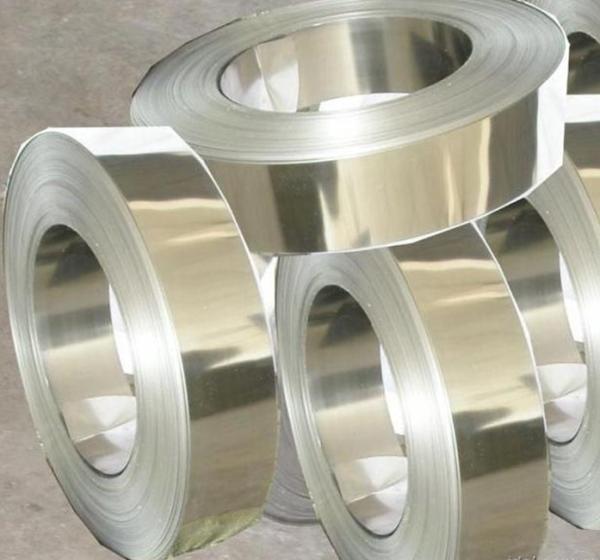

1J46, 1J50, 1J54 T: 0.03—0.10mm W:180—250mm T: 0.10—1.0mm W: 10—250mm T: 1.00—2.50mm

Description:

Having a high saturation magnetic induction and a high magnetic permeability.

Applications:

Moderate magnetic field transformer, relay, electromagnetic clutch, choke, and magnetic circuit parts of the core, the pole piece, headset diaphragm, earth leakage circuit breakers, earth leakage circuit breaker relay parts, gas safetyvalve, magnetic shielding, gyro, automatic synchronous motor, electronic table micro-motors.

Specifications:

Thickness:0.03—0.10mm Width:180—250mm

Thickness:0.10—1.0mm Width:10—250mm

Thickness:1.00—2.50mm Width:100—250mm

Tolerance: +/-0.01mm.

Other specifications can be customized

Surface:2B

Hardness:240—280HV(As order’s requirements)

MOQ:1 tons

Port of Loading:Shanghai

Payment:T/T

High permeability DC magnetic properties of high saturation magnetic induction soft magnetic alloy

Alloy

Name

Type

Level

Thickness /diameter

/mm

The agnetic permeability μ in 0.4A / m magnetic field strength

μ0.4 (mH / m)

Maximum permeability μm (mH / m)

Coercivity (saturation magnetic induction)

Hc/A·m-1

≤

Saturation magnetic induction

Bs/T

≥

1J46

Cold rolled strip

0.03~0.04

1280(1.6)

18000(22.5)

32

1.5

0.05~0.09

1600(2.0)

22000(27.5)

24

1.5

0.10~0.19

2000(2.5)

25040(31.3)

20

1.5

0.20~0.34

2480(3.1)

30000(37.5)

16

1.5

0.35~2.50

2800(3.5)

36000(45.0)

12

1.5

Hot rolled flat

4.5~20

2000(2.5)

25040(31.3)

16

1.5

Hot forging bar

20~100

2000(2.5)

25040(31.3)

16

1.5

1J50

Cold rolled strip

Ⅰ

0.05~0.09

2000(2.5)

28000(35)

20

1.5

0.10~0.19

2320(2.9)

32000(40)

14.4

1.5

0.20~0.34

2640(3.3)

40000(50)

11.2

1.5

0.35~0.50

3040(3.8)

50000(62.5)

9.6

1.5

0.51~1.00

3040(3.8)

50000(62.5)

9.6

1.5

1.10~2.50

2800(3.5)

45040(56.3)

9.6

1.5

Ⅱ

0.10~0.19

3040(3.8)

35040(43.8)

12

1.5

0.20~0.34

3520(4.4)

45040(56.3)

10.4

1.5

0.35~0.50

4000(5.0)

52000(65)

8.8

1.5

0.51~1.00

4000(5.0)

40000(50)

10

1.5

1.10~2.50

3040(3.8)

35200(44)

12

1.5

Ⅲ

0.05~0.20

10000(12.5)

60000(75)

4.8

1.52

Hot rolled flat

4.5~20

2480(3.1)

25040(31.3)

14.4

1.5

Hot forging bar

20~100

2480(3.1)

25040(31.3)

14.4

1.5

1J54

Ⅰ

0.03~0.04

1520(1.9)

16000(20)

20

1.0

0.05~0.09

2000(2.5)

20000(25)

16

1.0

0.10~0.19

2480(3.1)

25040(31.3)

12

1.0

0.20~0.34

3040(3.8)

28000(35)

9.6

1.0

0.35~0.50

3200(4.0)

32000(40)

8

1.0

0.51~1.00

3040(3.8)

32000(40)

8

1.0

Ⅱ

0.03~0.04

3040(3.8)

24800(31)

12

1.0

0.05~0.09

3040(3.8)

24800(31)

12

1.0

0.10~0.19

3120(3.9)

28000(35)

10

1.0

0.20~0.34

3120(3.9)

30000(37.5)

10

1.0

0.35~0.50

3520(4.4)

35200(44)

8

1.0

Hot rolled flat

4.5~20

1600(2.0)

16000(20)

20

1.0

Hot forging bar

20~100

1600(2.0)

16000(20)

20

1.0

Competitive Advantage:

First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
