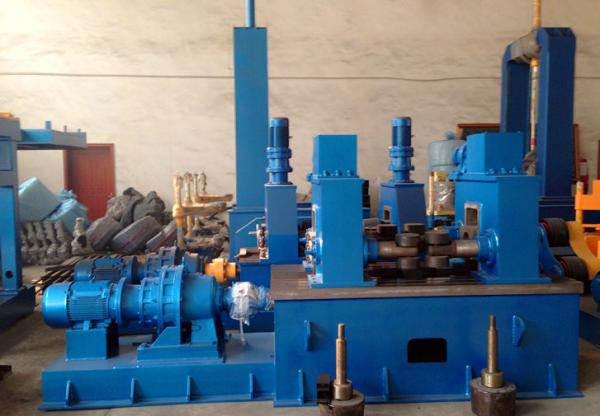

High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine
High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine
High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine
High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine
High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine
High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine
Specifications
Place of Origin :
China
Brand Name :
Sunny
Certification :
Certification of original
Model Number :
JZ-40
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Electric control box with wooden package,Mainframe with Plastic paper package
Delivery Time :
30 work days
Payment Terms :
1-30% T/T down payment,70% T/T before delivery 2-30% T/T down payment,70% LC at sight
Supply Ability :
20 sets per month
Color :
Blue
Correcting Speed :
13300mm/min
Flange thickness :
6mm - 40mm
Major motor :
11kw
Product Name :
H-Beam Production Line
Voltage standard :
380V|50HZ|3PH
Description

High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine

Kindly Noted:

  1. Flange thickness is suitable from 6-40mm.
  2. Voltage standard is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
  3. Customer should provided us technical parameters,such as the effective cutting width and length,cutting thickness.
  4. Major motor is 11kw

Description:

JZ-40 H-beam steel flange straightening machine is specially designed for the correction of the steel flange,The main machine use the 22KW electric motor and Pin gear reducer drive characterized by high efficient and high speed.All the correcting rollers are made of high-quality alloy steel.Besides ,the machine is put under advanced hot treatment to prevent crackles.All the parts are reinforced to stabilize the long service life.

Applications:

The machine is used for the H-beam production line ,to correct the H-beam ,to ensure the workpiece straightening.

Specifications:

Height of the Wing Board

b=180-900mm

Thickness of Wing Board

S=6-40mm

Height of the Former

≥180mm

Power Rate of Major Motor

11kw

Correcting Speed

≈13300mm/min

Relationship Between the Width and Thickness

of the Work Piece

s

6-30

30-40

b

180-800

400-900

Draft drawing:
High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine

Competitive Advantage:

1.Using famous electric ,such as Siemens or Schneider
2. With steel and rubber roller bed can ensure a long time service.

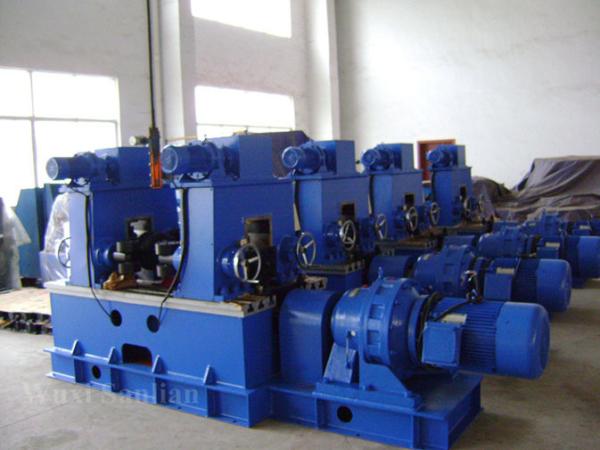

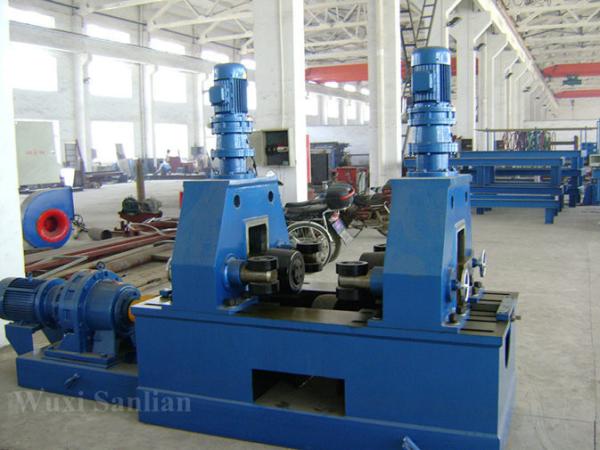

Detailed pictures for reference:


High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine

High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine

High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine

High Efficiency H-Beam Production Line Alloy Steel Flange Correcting Machine

Installation and commissioning:

If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.

Why always Sunny?

1. 360°guarantee makes ordering risk free.

2. 20 years welding machine manufacture experiences.

3. one-stop service of welding.

4. OEM service.

5. Quickly feedback for your problems.
