Steel Coil Slitting Line / Cold Formed Steel Sections Steel Joist Batten And Hollow

1. Parameters

2. Features

● The production line is a thick metal coil leveling and cut into a massive of special equipment. Usually cited by the feeding car, uncoiler, pallet pressure device, leveling host activitiesacross the bridge, guide corrective device, length agencies, film equipment, shear, conveyor table, pneumatic discharge rack, hydraulic lift the composition of the pile material, material transport roller and hydraulic system, electrical control system, the concerted action of PLC control. The main hydraulic, pneumatic and electrical conreol components, cot to length system selected international brands.

● This equipment is mainly used for processing cold-rolled carbon, stainless steel coil, and non-ferrous metal coil, configuration, six-leveler to the entire pacification of long shear plate surface of the metal aluminum and other high coil.

● According to customer requirements, the fine two leveler can be used early; fixed length sent to shear can be ordinary mechanical appliances collaborative action, digital variable frequency or AC servo technology; shears can be equipped with the ordinary machinery, hydraulic press type electromagnetic clutches, pneumatic clutch transmits power high-speed gate shear, mobile tracking the chase cut and rotary flying shear machine. Supporting related molding machine can be used for a wider range extension.

3. Machine components

● Preparation stage

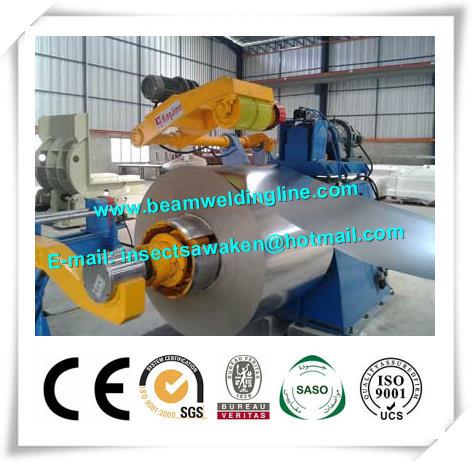

● Loading trolley & Uncoiler (Symmetric cones)
● Leading device
● Pinch rollers, leveler & shear
● Shear, welding & Side deviation rectifying device
● 1# Looper
● Sidedeviation rectifying device, pinch roller & slitter

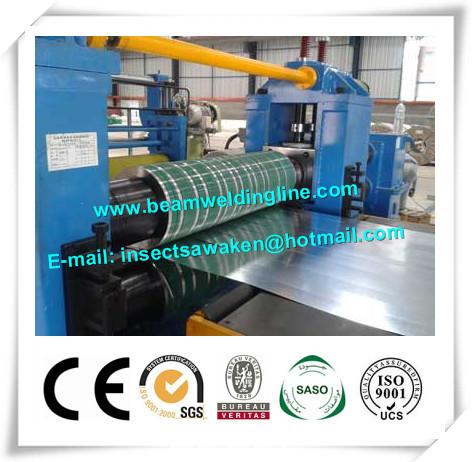

● Slitter & pneumatic clamp device
● 2# Looper
● Strips separation device
● Tension roller & Shear
● Direction roller & output guider
● Recoiler & Unloading car
● Finished products
