304 Stainless Steel Swing Barrier Gate Water Resistance for Security
304 Stainless Steel Swing Barrier Gate Water Resistance for Security
Specifications
Place of Origin :
China
Brand Name :
RS Security
Certification :
CE RoHS,FCC,SGS
Model Number :
RS 216
MOQ :
1pcs
Price :
2000USD
Packaging Details :
wooden box
Delivery Time :
3-5days
Payment Terms :
TT Western Union
Supply Ability :
3000pcs/month
Description

304 Stainless Steel Swing Barrier Gate Water Resistance for Security

Specifications

Swing Gate Turnstile
304 stainless steel
Self-report fault
Pass indication
Double anti-pinch

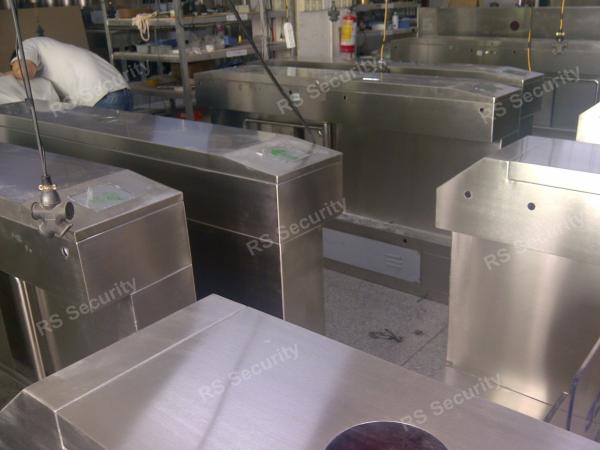

RS 216 304 Stainless Steel Swing Gate Turnstile


Introduction

A turnstile is a form of gate which allows one person to pass at a time. It can also
be made so as to enforce one-way traffic of people, and in addition, it can restrict
passage only to people who insert a coin, a ticket, a pass, or similar. Thus a
turnstile can be used in the case of paid access, for example public transport as a ticket barrier or a pay toilet, or to restrict access to authorized people, for example in the lobby of an office building.

Functions and features:

  • Self-report fault, convenient for using and maintainance
  • Pass indication function
  • Double anti-pinch(mechanical and infrared induction) protection
  • Barrier gate automatically open when power failures, and reset when power on, meet the fire
  • safety requirements
  • Barrier gate automatically locking following with sound alarm when has illegal invasion
  • In and out mode can be adjusted, controlled or free; closing barrier mode can be adjusted,
  • infrared induction closing or delay closing(time can be adjusted)
  • Has remote control switch, to meet the special needs of customer
  • Standard and uniform external electric interface, can be connected with various kinds of read
  • and write devices, great for system integration
  • Can be connected with access control system, consumption system, electrical ticket system,
  • biological recognition system and other systems


Specifications:

Body material 304 stainless steel
Dimensions 1200 x 300 x 990mm
Swing arm length <900mm(single)
Swing angle 0-180°
Pass ways single directional and bi-directional
Pass speed 40 people/min(normal open); 25-30 people/min(normal close)
External connecting power AC220V
Indicator light voltage DC12V
Environmental temperature -15°C to 75°C
Relative humidity <95%, no condensation
Communication interface RS485
Input interface switch signal(relay signal)
Drive motor brush type motor DC24V
Bar operation time about 2S


Applications:

Turnstiles are used at a wide variety of settings, including stadiums, amusement parks, museums, mass transit stations, office lobbies, retail sites, cafeterias, temporary exhibits, ski resorts, casinos and souvenir stands.
