Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape
Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape
Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape
Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape
Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape
Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape
Specifications
Brand Name :
Zhongyuan
Model Number :
Z100-300
Certification :
CE
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
within 60days
Packaging Details :
One machine requires 1X40GP container. Anti-rust anti-corrosion treatment, suiting for long time sea shipping.
Roller material :
CR12 mould steel
Cutter material :
Cr12 mould steel
Shaft for rollers :
82mm solid steel
Main power :
15kw
Hydraulic power :
5.5KW
Cutting style :
Automatic hydraulic cutting
Controller :
Mitsubishi PLC and transformer
Punching :
punching or no punching for option
Machine's size :
10500X1200X1500mm (LXWxH)
Quality system :
ISO9001
Description

Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape

Feature of Z Purlin roll forming machine

One machine can produce different sizes of purlines.

Technical data of Z purlin roll forming machine

Suitable Material

Cold-rolled steel strip and heat-treated galvanized steel strip

Thickness of raw material

1.5-3.0mm (235-345Mpa)

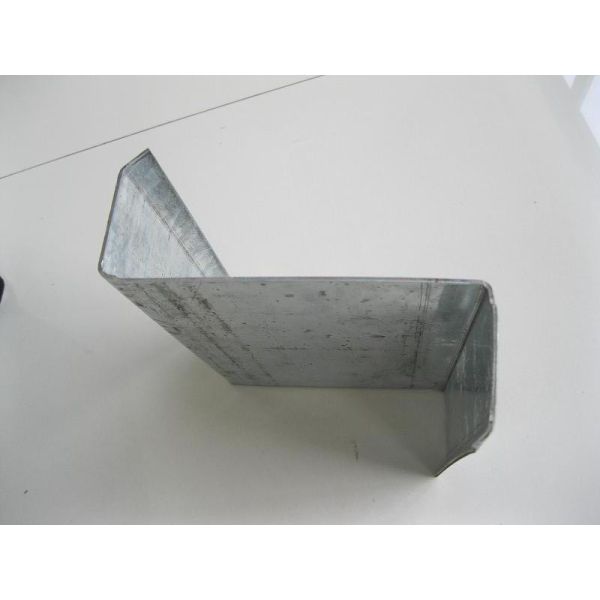

Size of Z purlin

100-300mm adjustable (special size available)

Material of roller

Cr12 mould steel being quenched treatment,HRC58-60

Material of cutter blade& punching die

Cr12 mould steel with quenched treatment, HRC58-60

Material of shaft

High quality 45# steel with heat treatment.

Roller grinder milling.

Forming speed

about 10-12m/min

Power Requiremen

Main motor power: 15 Kw(Depend on final design)

Hydraulic station power: 5.5Kw (Depend on final design)

Diameter of shaft for rollers

82mm

Controlling system

Mitsubishi PLC & converter

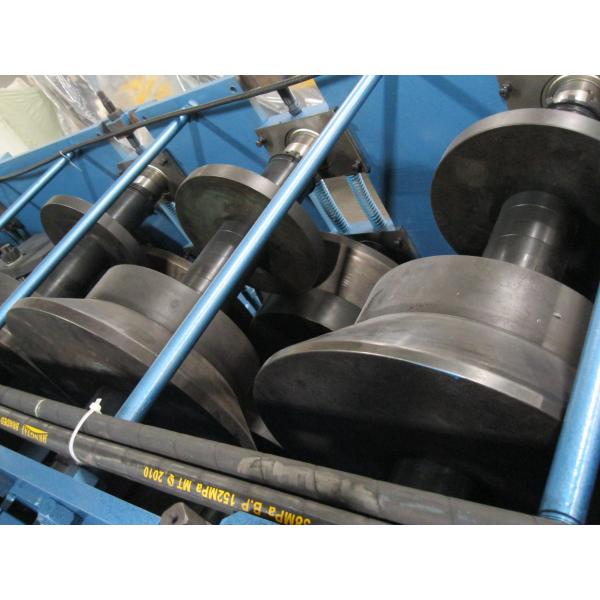

Quantity of rollers

about 15 stations for main rollers

Weight of machine

About 9000KGS

Size of machine installation

About 19 m x 2.3 m x1.5m

Product application of Z shape purlin roll forming machine

They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape

Our Metal Z shape Purlin Roll Forming Machine’s advantages

1. Anti-rust roller: Cr12 mould steel with quenched treatment, long life time.

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.

5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.

8. Long life: Ensure you our produce machine’s lifetime more than 15 years.

Certificate: ISO 9001, CE

Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shape

Cold Rolled Steel Strip Purlin Roll Forming Machine for Z shapeCold Rolled Steel Strip Purlin Roll Forming Machine for Z shape
