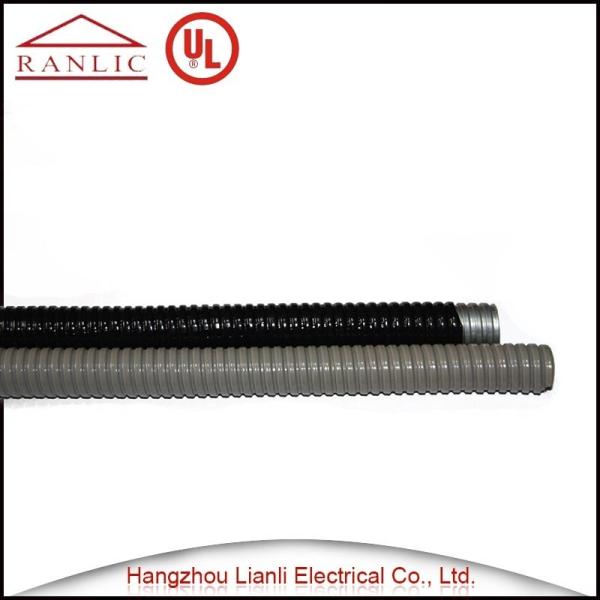

Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Specifications
Brand Name :
Ranlic
Model Number :
RL-F44-12….refer to specification
Certification :
Ul CERTIFICATE NO.E350597
Place of Origin :
Zhejiang,china
MOQ :
1000meters
Price :
Negotiable
Payment Terms :
T/T OR LC
Supply Ability :
1000000METERS/MONTH
Delivery Time :
30 days after received the deposit
Packaging Details :
10-100meters/roll
Description

Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated

Quick Detail:

Size:3/8’’ to 4’’

Color: black or grey

Material: inside –galvanized steel, outside : pvc

Pvc flexible hose or plastic flexible conduit

Description:

Flexible metal conduits for general purpose applications and installations in close quarters that require added

flexibility made from high-grade, hot dipped,galvanized low carbon steel.

Continuous interlocking metal strip design enhances flexibility a nd intergrity

Interior surface allows for easy wire fishing

3-hour through-penetration fire systems

Brand name: Ranlic

Applications:

Widely used for general electrical wiring where flexibility and mechanical protection are required.

Connect fm conduit to junction box

Specifications:

INSIDE DIA.

OUTSIDE DIA.

ITEM

PITCH

GAL.COIL

MIN.BEND

STANDARD

Size

MM

MM

CODE

MM

THICKNESS

RADIUS

PACKAGE METERS

3/8"

12mm

16.30mm

RL-F60

4.70mm

0.20mm

50 Degree

100 Meters

1/2"

15mm

19.70mm

RL-F61

5.70mm

0.20mm

65 Degree

50 Meters

3/4"

20mm

25.10mm

RL-F62

6.40mm

0.22mm

75 Degree

30 Meters

1"

25mm

31.00mm

RL-F63

8.70mm

0.22mm

100 Degree

30 Meters

1-1/4"

32mm

40.30mm

RL-F64

10.50mm

0.30mm

125 Degree

15 Meters

1-1/2"

38mm

45.80mm

RL-F65

11.40mm

0.31mm

150 Degree

15 Meters

2"

50mm

57.10mm

RL-F66

11.40mm

0.35mm

175 Degree

10 Meters

2-1/2"

63mm

70.80mm

RL-F67

14.20mm

0.45mm

200 Degree

10 Meters

3"

75mm

85.90mm

RL-F68

14.20mm

0.50mm

225 Degree

5 Meters

3-1/2"

83mm

95.55mm

RL-F69

14.20mm

0.60mm

230 Degree

5 Meters

4"

100mm

108.50mm

RL-F70

14.20mm

0.60mm

275 Degree

5 Meters

Competitive Advantage:

Quick delivery: 10 days for one 40ft container

Compititve price
