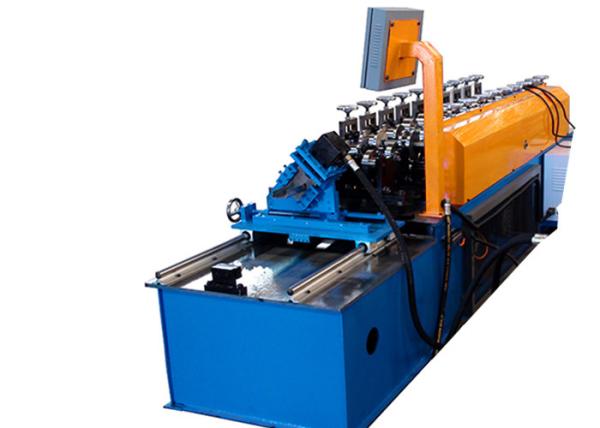

C U Profile Frame Villa Light Steel Gauge Keel Roll Forming Machine
C U Profile Frame Villa Light Steel Gauge Keel Roll Forming Machine
C U Profile Frame Villa Light Steel Gauge Keel Roll Forming Machine
C U Profile Frame Villa Light Steel Gauge Keel Roll Forming Machine
Specifications
Brand Name :
Yuhua
Model Number :
GD160
Certification :
CO,CE,FORM A, FORM E
Place of Origin :
China
MOQ :
1 set
Price :
USD 30000/set
Payment Terms :
T/T
Supply Ability :
10 sets for 75 working days
Delivery Time :
75 working days
Packaging Details :
Plastic Film and Wooden Case
Machine Name :
Roll Forming Machine
Usage :
Villa Light Steel Keel
Width of Coil :
100~450mm
Thickness of Coil :
0.75~1.2mm
Coil diameter :
φ430~590mm
Control :
CNC
Forming Speed :
30m/min
Main Motor Power :
5.5KW
Hydraulic Motor Power :
7KW
Machine Color :
As your requirement
Roller Material :
Cr12 or Gr15
Shaft Material :
40Cr
Description

High Precision Automatic C U Profile Frame Villa Light Steel Gauge Keel Roll Forming Machine

Transmission and hydraulic system

Main function: molding power using servo drive, because the parking distance is short, the length of the advantages of high control precision

So the length of the board control precision

1. Servo power: Beijing super synchronous servo motor (5.5KW) + Japan new treasure precision planetary gear reducer

2. Hydraulic station: hydraulic power 7.5KW

Tank capacity 200 liters

3. Main parts: Germany Rexroth

The supporting frame (when online production, you can put the finished product)

1. Support length 4 m

2. The material support mode of sideslip with gas, one end of a support material storage station

Accessories and spare parts

Spare parts gifts: a set of easy punching die, a set of tools

Instruction book

Acceptance criteria

Straightness

Shape tolerances:±1mm

Length tolerance:±1mm

Control System

Function: through the USB interface or network design parameters directly to the control computer, installed by the computer NC control software to import and automatically read BOM documents, after the introduction of the production batch can be selected

Voltage: 220V, 50Hz

Control mode: PC operation Win8 operating system, built-in control software

PLC manufacturer: Panasonic Japan

Relay: Schneider

Button: Schneider

Hydraulic valve: Rexroth

Introduction of Light Steel Keel Roll Forming Machine

The lower assembly house to light steel structure as the structure system and the traditional wooden structure, brick, brick and concrete structure compared with the building of high strength, light weight, good seismic performance, high degree of industrialization, the construction quality is high, the structure is light, the best continuity and the shortest construction period, suitable for different climatic conditions the atmosphere and environment, can be reused, reducing environmental pollution and building excellent.

Light steel structure is Chinese designated by the Ministry of housing and urban construction assembled low rise residential industrialization, business involves the new wall materials, energy-saving building structure, the overall energy saving system of new housing, housing equipment, the production of energy-saving building materials products and equipment production enterprise.

Our company integrates production, scientific research, development, manufacturing assembly type housing equipment enterprises. Housing investment, energy saving, environmental protection, economic and comfortable, beautiful, seismic, prefabricated housing quality intelligent, building green houses, build quality houses will become light steel structure industry in the future an important new market space.

Light Steel Villa Roll Forming Machine Detailed Parameters

Strip technical parameters

1. Strip width:100~450mm

2. Strip thickness:0.75~1.2mm

3. Coil diameter:φ430~590mm

4. Maximum diameter of coil:φ1300mm

5. Coil weight:3 T

6. Coil material:G550

7. Crescent steel coil≤5mm/10m

8. The amount of unilateral coil tower≤50mm

Plate

65,70,

89,140

Four specifications

Plate shape optional
Additional component

A group of three hole wall anchor

(two diameter 3.5 wall connecting holes with a diameter of 16 feet connecting holes)
Description: 65 models, 70 models are mainly used for indoor partition wall; the model is generally as follows the following layer of three outside. The walls and the interior walls are the partition walls (three floors of this equipment can be completed); type 140. No. 140 is generally used as the following six floors (in order to save materials, the general use of the external walls of the model 89 types of walls

Light Steel Keel Roll Forming Machine Composition and Detailed Description

No Device name Quantity Remark
1 Decoiler 1 3Tons
2 Forming machine (forming, punching groove cutting, ink-jet printing) 1
3 Control system 1
4 Transmission and hydraulic system 1
5 Supporting frame 1 6m
6 Accessories and spare parts
No Device name Parameter Remarks
1 Forming machine frame

Rectangular

steel welding

 Flatness + 0.2mm
2

Roller

 Material: GCr15 Processing technology: CNC processing heat treatment to HRC55-58, and then fine grinding
3 Axis Material: 40Cr Processing technology: NC processing after quenching and tempering HRC28-32, and then grinding tolerance -0.02mm -0.05mm
4 Side Aluminum alloy anode treatment
5 Feeding way Guide plate + guide wheel group
6 Guiding Five roller (Up two down three) plus guiding
7 Alignment assembly On the two axes.
8 Forming punch Before forming punching (four slots), double punching four groups (pass custom)
9

Shear mode

Three knife cut after molding

Blade material: Cr12MoV

Printing Part

1

Marking system

(Equipped with double nozzles, identifiable

Positive side)
Matthews printer controller Nozzle

Villa Light Steel Keel Specifications

Specification 70mm 89mm 140mm 70mm/89mm 89mm/140mm 89mm-300mm
Function Single specification Single specification Single specification Double specification Double specification Standard polar transformation
Printer Both hole printer Both hole printer Both hole printer Both hole printer Both hole printer Both hole printer
Profile C C C C C C
Coil Thickness 0.75-1.2mm 0.75-1.3mm 0.75-1.4mm 0.75-1.5mm 0.75-1.6mm 0.75-1.7mm
Operation system HG-R1 HG-R1 HG-R1 HG-R3 HG-R3 HG-R5
Forming speed 30m/min high speed without punching&cutting 31m/min high speed without punching&cutting 32m/min high speed without punching&cutting 33m/min high speed without punching&cutting 34m/min high speed without punching&cutting 35m/min high speed without punching&cutting
Motor power 5.5KW 5.5KW 5.5KW 7.5KW 11KW 22KW
Hydraulic motor power 7.5KW 7.5KW 7.5KW 7.5KW 7.5KW 11KW
Hydraulic cooling Air conditioning cooling Air conditioning cooling Air conditioning cooling Air conditioning cooling Air conditioning cooling Air conditioning cooling
Hydraulic cooling cooling system cooling system cooling system cooling system cooling system cooling system
Hydraulic accumulator √ √ √ √ √ √
Shearing Post cutte Post cutte Post cutte Post cutte Post cutte Stepless post cutte
Triple hole √ √ √ √ √ √
Service hole √ √ √ √ √ √
Dimple √ √ √ √ √ √
Web swage √ √ √ √ √ √
Lip cut √ √ √ √ √ √
Truss notch √ √ √ √ √ √
Wed notch √ √ √ √ √ √
Electrical conditions 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Hydraulic station 230L 230L 230L 230L 230L 230L
Dimensions 5.25m*1.1m*1.6m 5.25m*1.1m*1.6m 5.25m*1.1m*1.6m 5.25m*1.6m*1.6m 5.25m*1.6m*1.6m 9.8m*2.0m*1.8m
Weight 3.5T 3.5T 3.5T 4.5T 4.5T 8.5T
Uncoiler 3T 3T 3T 3T 3T 3T
Materiel platform 3M 3M 3M 3M 3M 3M
