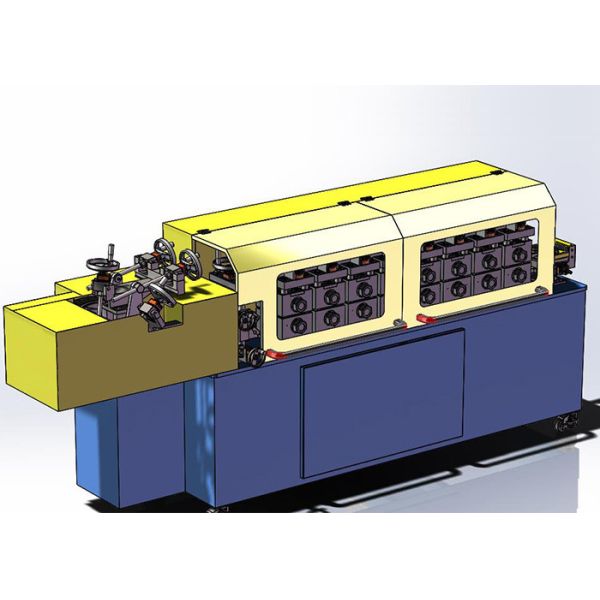

Stainless Steel Aircraft Clamps Cold Roll Forming Machine

Roll Forming Working Process

Decolier ---- Straightening ---- Roll Forming ---- Bending ---- Cut Off

2in1 Decoiler and Straightening Machine with Pressing Arm

Guide Device

Accurate introduction of the first forming wheel, with digital display, detection of head and tail of coils.

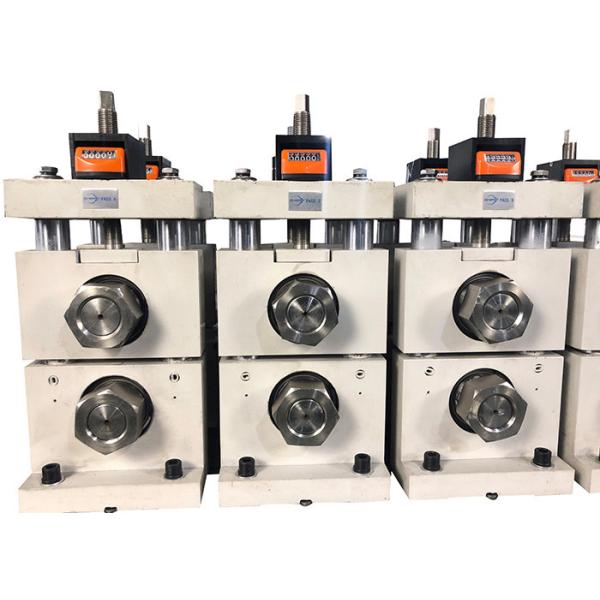

Roll Forming

Lubrication System

The lubrication system for segment forming will be self-contained within the machine.

The excess lubrication from the forming process will be re-circulated, filtered and re-used.

Guardings and Control System

All PLC programmes and any on-screen instructions must be in the English language.The operator controls will be mounted in a location, which best suits, the safe operation of the machine.
At least one Emergency stop will be fitted at the operator position and others, as the design requires.

The equipment will be run through a PLC with instructions/messages displayed on a small HMI screen. The control system should include, at minimum, the following
Machine operation monitoring.
List of Inputs and Outputs and their condition
Simple operator interface using push buttons or touch screen.
Where machine positions/settings are required for different products, these settings must be controlled via the HMI. The HMI will be used to call the correct program for the particular product with all machine settings automatically transferred. The program should also show digital readout’s of diameter, & pinch rollers position, etc.

FAQ

Q: What products can this machine produce?

A: Auto V-band Clamps, ring clamps, G coulpings, Flanges, Gaskets, Aircraft Clamps

Q: What is the production speed?

A: Our company adopts servo motor, the speed can be controlled, according to the material thickness and diameter of the product, all of which can meet the requirements of customers.

Q: What are the advantages?

A: This roll forming machine we developed the latest technology to produce clamps, through one-time roll forming to complete, instead of the previous use of punch and other processes.
