Metal Door Machine Roller Shutter Slat Steel Roll Forming Machine
Metal Door Machine Roller Shutter Slat Steel Roll Forming Machine
Metal Door Machine Roller Shutter Slat Steel Roll Forming Machine
Metal Door Machine Roller Shutter Slat Steel Roll Forming Machine
Specifications
Brand Name :
Co-effort
Model Number :
GD130
Certification :
CO,CE,FORM A, FORM E
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000/set
Payment Terms :
T/T
Supply Ability :
10 sets/month
Delivery Time :
45 days
Packaging Details :
Plastic Film and Wooden Case
Driven Way :
Gearbox or Chain driven
Speed of Roll Forming :
15~30 m/min
Machine Name :
Shutter Door Roll Forming Machine
Roller Stations :
12 Passes
After-sales Service Provided :
Online support, Free spare parts, Engineers available to service machinery overseas
Roller Material :
Cr12
Shaft Material :
40Cr
Thickness :
0.4~1.5mm
Description

Automatic Galvanized Metal Door Machine Roller Shutter Slat Steel Roll Forming Machinery

CO-EFFORT Advantages

1. Our factory has advanced technology, experienced engineers, professional foreign trade team.


2. Standard design for you to choose from, you can also customize the machine according to your drawings.


3. Adopt the latest design and structure, make the machine durable.


4. Short delivery time, free training, free technical support for life.


5. Further study the local market to help customers grow and develop.

Roll Forming Machine Technical Requirements

Suitable Material Material GI, PPGI, PPGL
Width 130 mm
Thickness 1 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 12 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50 mm
Material of cutting blade Cr12 Heat Treatment
Speed 10-15 m/min
Side plate thickness 16 mm
Chain size 1 inch (you can choose gearbox driven)
Weight 2 tons
Length measurement Encoder

Electric Elements Brand

No Items Brand Remark
1 PLC Mitsubishi
2 HMI WEINVIEW
3 Electric Elements Schneider
4 Bearing NSK/SKF
5 Main Motor China Brand

Roll Forming Machine configuration and performance

Composition and Production Process

De-coiler →→Roll Forming→ Cutting→ Unloading

Technical Parameters

No Items Technical Parameters
1 De-coiler Width of Strip ≤150mm；
Thickness of Strip ≤1mm；
Inner Diameter of Coil ф480-520 mm(according to customer’s requirements)
Outer Diameter of Coil φ1300mm；Loading Weight:≤2T
Expand Way Manual
2 Roll Forming
Forming Station 12 Stations
Driven Chain
Pitches of Passes 300mm
Max. Width of Strip 150mm
Max. Thickness of Strip 1mm
Roller Shafts Φ50mm ,45# (quenching and tempering)
Roller Material Cr12,Hardness HRC58-60°
Main Motor Power 5.5KW
3 Cutting Device
Cutting Way Hydraulic
Cutting Accuracy Length Encoder Control Full Length (+2MM)
Material of Cutting Blade CR12MOV
4 Unloading
Manual blanking structure Rollers
5 Control System

Usage and Characteristics

1. The whole line is controlled by PLC, LCD touch screen and man-machine interface. Realize the interaction between people and PLC. Operators can automatically run (programmable control) and monitor the control process through the set program. Operators can control the production line and modify the control parameters. They can also real-time monitor the operation status of equipment, operation parameters and fault indication. The length of the part can be adjusted by setting the number of the parts. Real-time monitoring equipment operation status and fault indication.

2. There are two modes of operation: manual and automatic. With manual and automatic switching function: in the manual state, can stand-alone operation, easy maintenance; in the automatic state, the full range of production run, the order to start; full line with emergency stop button, easy to deal with emergencies, to ensure that equipment and operators Safety.

3. There is a manual operation panel next to the operator to facilitate the operation of the workers.

1 Name of Machine Rolling Door Roll Forming Machine/Roll-up Door Slat Making Machine/Roller Shutter Door Strip Production Line
2 Equipment operation PLC Control
3 Total power 10KW
4 Effective Width 312mm
5 Roller Station 12 Stations
6 O.D. of Rollers 25-30mm
7 Productivity 15-30m/min
8 Weight around 3.5T
9 Voltage 380V50Hz 3Phases (According to your requirements)
10 Thickness of Steel Coil 0.4-1.5mm
11 Cutting Device Cutting by flying saw
12 Usage warehouse , supermarket , garage,etc

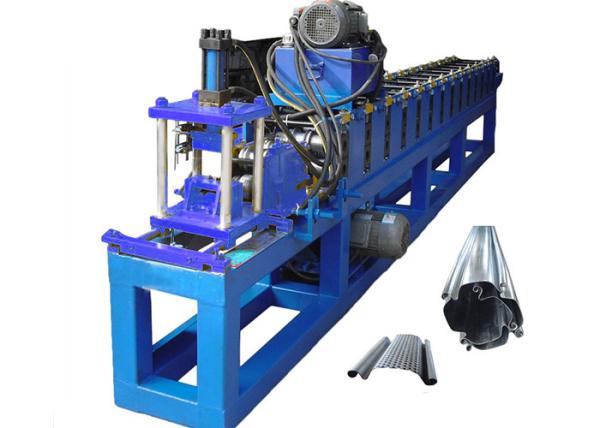

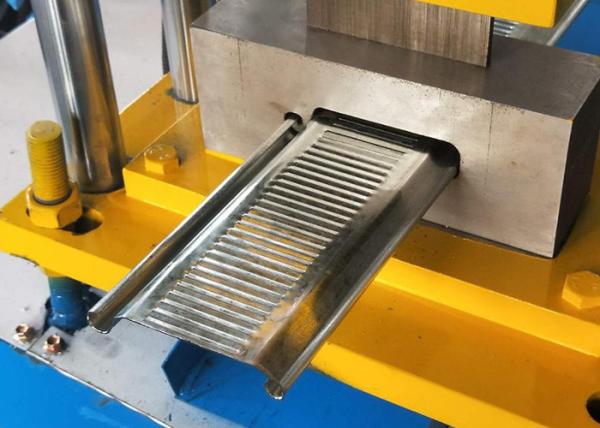

Shutter Door Roll Forming Machine Details
