Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
Specifications
Place of Origin :
China
Brand Name :
TECHWELL
Certification :
CE
Model Number :
TW-35-150-1050/1220
MOQ :
1 Set
Price :
Contact Us
Packaging Details :
Standard packing
Delivery Time :
65 working days
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 sets
Model :
TW-35-150-1050/1220
Material :
Galvanised Coil
Material thickness :
0.3-0.7mm
Forming Station :
18
Axis Diameter :
¢ 76mm
Transporting Type :
Chain Drive
Description

Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station

Main Specifications of Corrugated Roof Sheet Roll Forming Machine

Coil Material Thickness 0.3-0.8mm
Coil width Custom-made, 1000mm or 1200mm or 1250mm
Yield Strength 250-350 Mpa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Corrugated Roof Roll Forming Machine Forming Stations 16 Stations ( Depend on Profiles )
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 76mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 5.5KW
Cutting Cutting type Hydraulic cutting
Cutting power 3KW
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen PANASONICE or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Runout Table Table type Simple nonpower type
Function To support the finished panels

Components of Corrugated Roll Forming Machine

Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Corrugated Roof Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Output Table 2 Units

Reference Corrugated Profile Drawings

Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station

TECHWELL Advantage

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

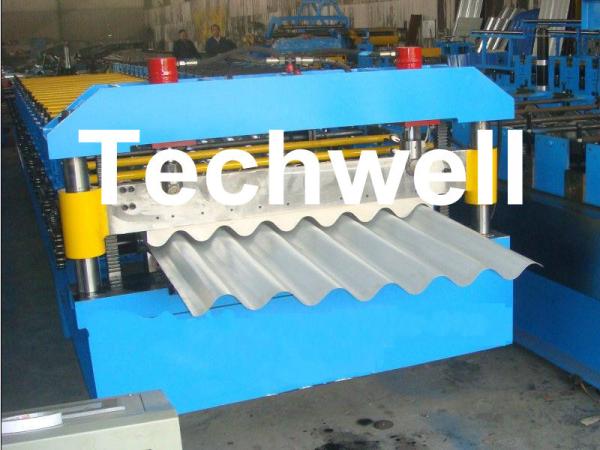

Photos of Corrugated Sheet Roll Forming Machine

Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station

Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station

Factory Pictures

Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station

Big Wave Corrugated Roof Roll Forming Machine Galvanised 5.5 Kw with 18 Forming Station
