Steel Z Purlin, Z Profile Roll Forming Machine for Making Metal Z Shaped Purlin

A). Introduction of Z Purlin Rolling Former

Z Purline Forming Machine can produce many types of Z-shaped purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, punching equipment, pre-cutting equipment, Z-shape forming system, hydraulic station, and controlling system.

The C-shaped purlines formed by this machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.


B). Main Specification of Z Purlin Rolling Former

• Material: GI, Carbon steel
• Material thickness: 1.5-3.0mm
• Machine diameter: about 11500x1500x1300mm ( LXWXH )
• Weight of machine: about 12 Ton
• Decoiler: Manual or hydraulic decoiler ( customer can choose )
• Weight capacity of decoiler: 5 Ton
• Forming station: about 17
• Principle axis: 80mm diameter
• Forming speed: 0-15m/min
• Drive type: 1.5' chain transmission
• Roller material: GCr15 steel, quenched and heated process
• Main power: 18.5KW
• Hydraulic power: 11KW
• Punching: hydraulic punching
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand

C). Working Flow of Z Purlin Rolling Former


Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table




D). Component & Quantity of Z Purlin Rolling Former

• Decoiler ------------------------------------------------- 1 Unit
• Feeding & Leveling ----------------------------------- 1 Unit
• Hydraulic punching device ----------------------------1 Unit
• Main roll forming machine ---------------------------- 1 Unit
• Hydraulic cutting device ------------------------------ 1 Unit
• Hydraulic Station --------------------------------------- 1 Unit
• PLC computer control -------------------------------- 1 Unit
• Output table -------------------------------------------- 1 Unit

E). Reference Drawing of Z Purlin Rolling Former









F). Our Advantages of Z Purlin Rolling Former

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

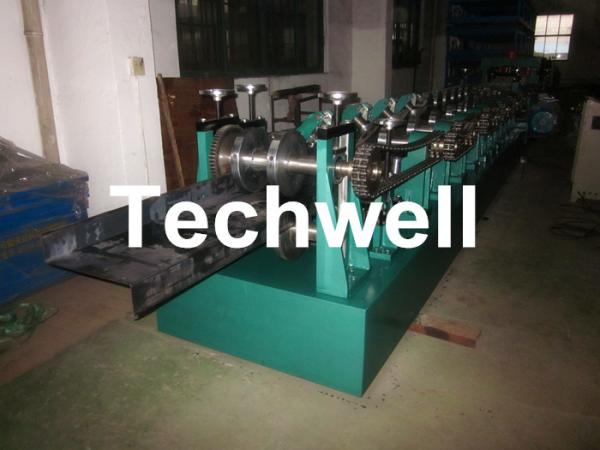

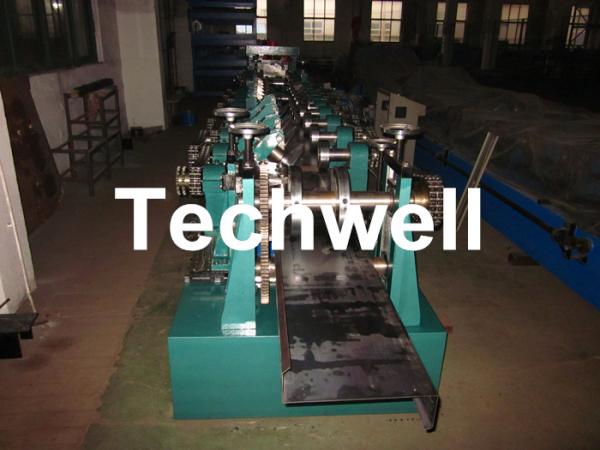

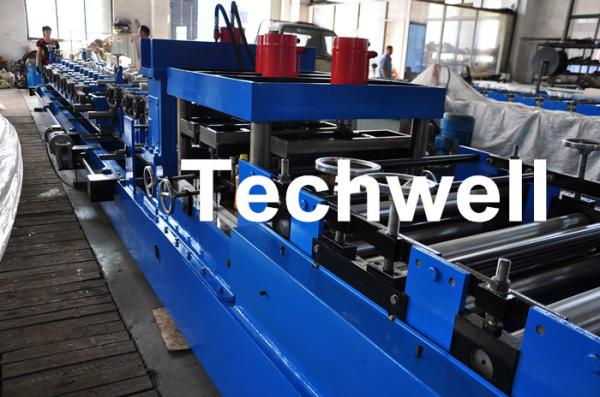

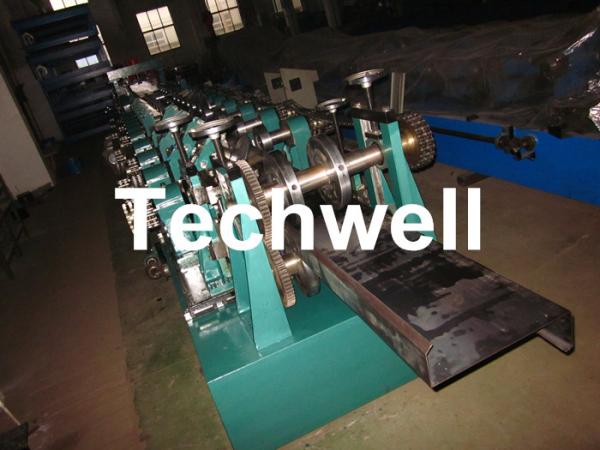

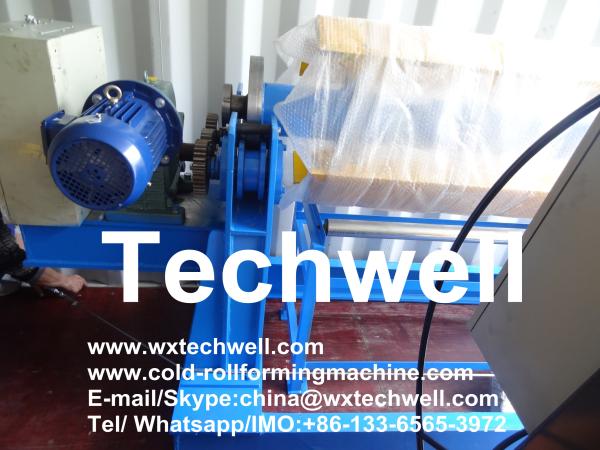

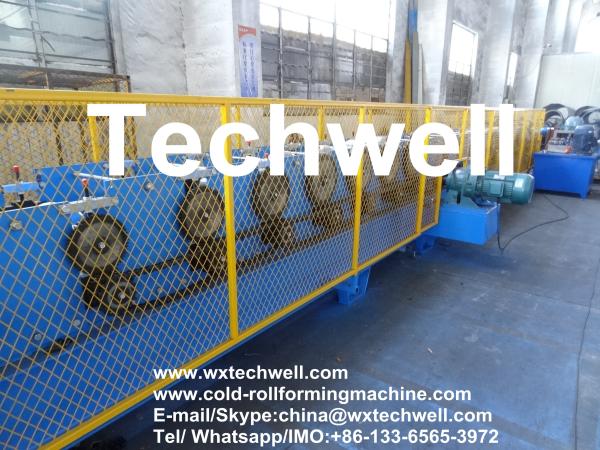

G). Reference Pictures of Z Purlin Rolling Former
