Specifications
Place of Origin :
China
Brand Name :
TECHWELL
Certification :
CE
Model Number :
TW-DTM45
MOQ :
1 Set
Price :
Contact Us
Packaging Details :
Standard packing
Delivery Time :
60-70 working days
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 sets
Material :
GI Coil or Carbon Steel
Material Thickness :
1.5-2.5mm
Forming Stations :
About 16 Stations
Main Power :
11 KW
Roller Material :
GCr15 steel, Quenched and heated process
Axis Material :
45# steel, heated and quenched
Description

Rolling Shutter Door Track Roll Forming Machine With 16 Forming Station TW-DTM45

Main Specifications

  • Material: G.i Coil or Carbon steel
  • Material Thickness:1.5-2.5mm
  • Forming Station of Door Track Roll Forming Machine: 16
  • Main Power: 11KW
  • Roller Material: GCr15 steel, Quenched and heated process
  • Axis Material: 45# steel. heated and quenched
  • Machine Diameter: about 11500mm(L)x1200mm(W)x1300mm (H)
  • Weight of machine: about 10 Ton
  • This roll forming machine suits for coiled metal material, make required shape after processing of uncoiling, forming continuously and cutting to length. Adopt PLC controlling system, frequency adjusting-speed technology, so that realize automatic production continuously.

Rolling Shutter Door Track Roll Forming Machine With 16 Forming Station TW-DTM45

Rolling Shutter Door Track Roll Forming Machine With 16 Forming Station TW-DTM45

Main Components

  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding & leveling------------------------------------ 1 Unit
  • Main roll forming machine --------------------------- 1 Unit
  • Hydraulic punching ----------------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ------------------------------------------ 1 Unit

Our Advantage

  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

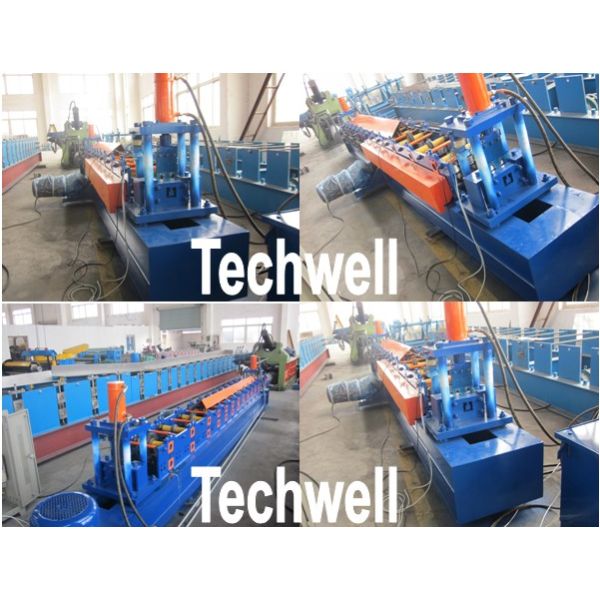

More Machine Pictures

Rolling Shutter Door Track Roll Forming Machine With 16 Forming Station TW-DTM45

Certificate

Rolling Shutter Door Track Roll Forming Machine With 16 Forming Station TW-DTM45
