G.i Coil / Carbon Steel 1.5 - 2.5mm Door Track Roll Forming Machine For Rolling Door Track

Main Specifications

• Material: G.i Coil or Carbon steel
• Material Thickness:1.5-2.5mm
• Forming Station: 16
• Main Power: 11KW
• Roller Material: GCr15 steel, Quenched and heated process
• Axis Material: 45# steel. heated and quenched
• Machine Diameter: about 11500mm(L)x1200mm(W)x1300mm (H)
• Weight of machine: about 10 Ton
• This roll forming machine suits for coiled metal material, make required shape after processing of uncoiling, forming continuously and cutting to length. Adopt PLC controlling system, frequency adjusting-speed technology, so that realize automatic production continuously.

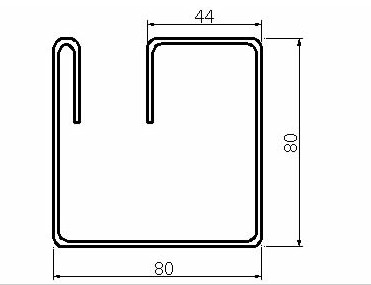

Door Track Profile Drawings

Work Flowing

Decoiler----Feeding & Leveling-----Roll Forming Machine------Hydraulic Punching------Cutting-----Run out table

Main Components

• Decoiler ---------------------------------------------- 1 Unit
• Feeding & leveling------------------------------------ 1 Unit
• Main roll forming machine --------------------------- 1 Unit
• Hydraulic punching ----------------------------------- 1 Unit
• Hydraulic cutting device ------------------------------ 1 Unit
• Hydraulic Station ------------------------------------- 1 Unit
• PLC computer control -------------------------------- 1 Unit
• Output table ------------------------------------------ 1 Unit

Applications

Door track, steel door track, steel security door track, rolling door track, door track rail...

Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
