Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine
Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine
Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine
Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine
Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine
Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine
Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine
Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine
Specifications
Place of Origin :
China
Brand Name :
TECHWELL
Certification :
CE
Model Number :
TW-FD1250
MOQ :
1 Set
Price :
Contact Us
Packaging Details :
Standard packing
Delivery Time :
55-65 working days
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 sets
Profile Sheet :
Floor Deck Profile
Material Thickness :
0.8-1.5mm
Main Power :
11kw * 2
Cutting Power :
5.5KW
Roller Material :
High Grade 45# Steel with 0.05mm Hard Chrome
Shaft Diameter :
90mm
Description


Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine

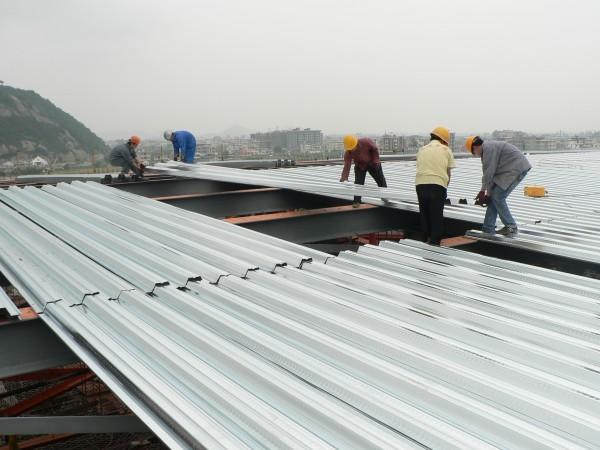

Application of Floor Decking Sheet Roll Forming Machine

Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...

Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine

Main Specifications of Metal Floor Deck Roll Forming Machine

Coil Material

Thickness 0.8-1.5mm
Coil width Custom-made
Yield Strength 250-350Mpa
Material PPGI, GI.
Decoiler / Uncoiler Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Roll Forming Machine Forming Stations 16-26 Stations ( Depend on Profiles )
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 90mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 11KW X 2
Cutting Cutting type Hydraulic cutting
Cutting power 4KW
Cutting Tolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Runout Table Table type Simple nonpower type
Function To support the finished panels

Components of Floor Deck Forming Machine

Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units

Working Flow of Metal Deck Forming Machine

Decoiler ---> Feeding ---> Main Roll Forming ---> Cutting To Length ---> Runout Table

Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine

Reference Floor Deck Profile Drawings

Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine

Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine

Photos of Floor Deck Roll Forming Machine

Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine

Galvanized Steel Sheet Floor Decking Roll Forming Machine / Cold Roll Forming Machine
