Z Channel / Section / Profile Cold Roll Forming Machine For 80 - 300 Width Z Channel


Working Flow of Z Channel / Purlin Roll Forming Machine

Decoiler ---> Fedding & Leveling ---> Punching ---> Roll Forming ---> Cut-to-length ---> Run out table

Z Channel / Section / Profile Cold Roll Forming Machine For 80 - 300 Width Z Channel

Main Specifications of Z Purlin Roll Forming Machine

Coil Material

 Thickness 1.5-3.0mm
Coil width Custom-made
Yield Strength 250-350Mpa
Material GI. Carbon Steel
Decoiler / Uncoiler Coil Width Max. 600mm
I.D 508-610mm
O.D Max. 1500mm
Pinch Feeding & Leveling Feeding roller 4 Rollers
Leveling roller 7 Rollers ( upper 3 rollers, bottom 4 rollers )
Punching Punching type Hydraulic Punching
Punching die Cr12Mov, quenched, HRC58-62
Roll Forming Machine Forming stations 17 Stations ( Depend on Profiles )
Roller material GCr15 steel, HRC58-62
Diameter of shaft 80mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 11KW
Cutting Cutting type Hydraulic cutting
Cutting blade Cr12Mov, quenched
Cutting Tolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Hydraulic Power 7.5KW
Runout Table Table type Simple nonpower type
Function To support the finished panels

Main Components of Z Channel Roll Forming Machine

Decoiler / Uncoiler 1 Unit
Pinch Feeding & Leveling 1 Unit
Punching 1 Unit
Main Roll Forming Machine 1 Unit
Cutting To Length 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units

TECHWELL Advantage

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

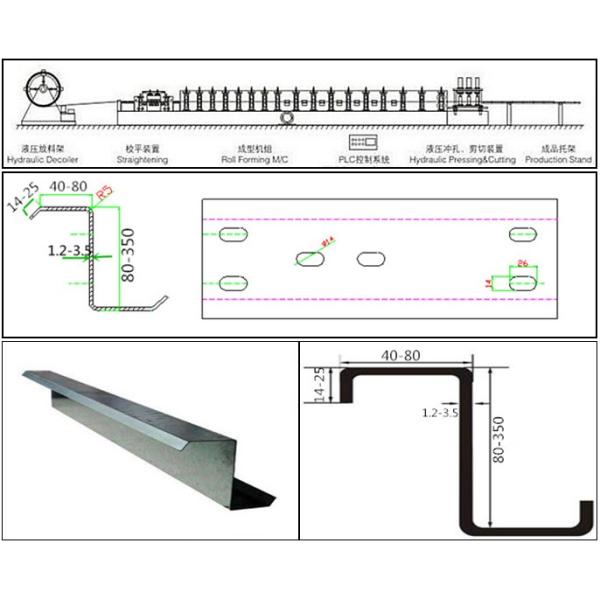

Z Purlin Profile Drawing for Reference
