Specifications
Place of Origin :
China
Brand Name :
TECHWELL
Certification :
CE
Model Number :
TW-DLM
MOQ :
1 Set
Price :
Contact Us
Packaging Details :
Standard packing
Delivery Time :
55-65 working days
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 sets
Material thickness :
0.3-0.8mm
Material width :
depend on customer’s requirement
Weight Capacity Of Decoiler :
5 Ton
Hydraulic Motor Power :
3 Kw
Forming Station :
approx 18 & 18
Machine Weigh :
about 8.5 Ton
Description


Automatical Double Layer Roof Wall Panel Roll Forming Machine for Making 0.3 - 0.8mm Thickness Corrugated Roof Sheet

A). Main Specifications of Dual Level Roll Former

  • Material thickness: 0.3-0.8mm FOR ROOF WALL PANEL
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 7.5 Kw
  • Hydraulic Motor Power: 3 Kw
  • Forming Station: approx 18 & 18 ( depend on profile drawing )
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 8.5 Ton

B). Working Flowing of Dual Level Roll Former


Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table

C). Main Components of Dual Level Roll Former

  • Decoiler ------------------------------------------------ 1 Unit
  • Feeding guide ---------------------------------------- 1 Unit
  • main roll forming machine ---------------------------1 Unit
  • Hydraulic cutting device ------------------------------1 Unit
  • Hydraulic Station -------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table -------------------------------------------- 1 Unit

D). Applications of Dual Level Roll Former

Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

E). Our Advantages of Dual Level Roll Former

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

F). Reference Drawing of Dual Level Roll Former

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

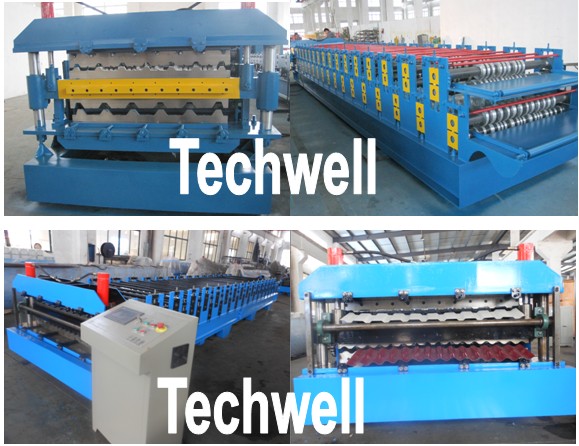

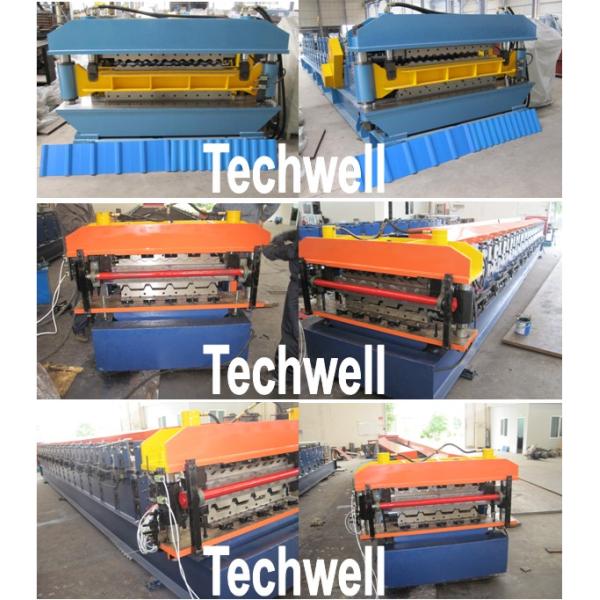

G). More Machine Pictures of Dual Level Roll Former

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

H). Factory Pictures of Our Company

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

I). Certificates of Our Machine & Company

Automatical Double Layer Roof Wall Panel Roll Forming Machine With 0.3 - 0.8mm Thickness

J). Certificates of Our Machine & Company

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler.

Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.

Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?

A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Item Contact Methods
Contact Person Lemon
E-mail / Skype sales@wxtechwell.com
Tel / Whatsapp/ IMO +86-15861597732
Website https://www.wxtechwell.com

Reference Videos

https://youtu.be/T5IKpomntU0

https://youtu.be/hbmizYpbE2Q
