Specifications
Place of Origin :
China
Brand Name :
TECHWELL
Certification :
CE
Model Number :
TW-GTM
MOQ :
1 Set
Price :
Contact Us
Packaging Details :
Standard packing
Delivery Time :
55-65 working days
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 sets
Material type :
Color steel, Galvanised, pre-painted galvanised
Mateial thickness :
0.35-0.6mm
Material width :
According to tile profile
Forming station :
16
Motor power :
7.5KW
Hydraulic power :
5.5KW
Description

Metal Roof / Color Steel Glazed Tile Roll Forming Machine, Color Steel Glazed Tile Machine

Main Technical Details

  • Material thickness: 0.35-0.6,Color Steel, Galvanised coil
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 7.5 Kw
  • Hydraulic Motor Power: 5.5 Kw
  • Forming Station: 16( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: C r 12
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 8.5 Ton

Components of Machine

  • Decoiler --------------------------------------------------------------------------------- 1 Unit
  • Film covering device ----------------------------------------------------------------- 1 Unit
  • Feeding guide ------------------------------------------------------------------------- 1 Unit
  • Main roll forming machine ---------------------------------------------------------- 1 Unit
  • Hydraulic pressing device ---------------------------------------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------------------------------------ 1 Unit
  • Hydraulic Station --------------------------------------------------------------------- 1 Unit
  • PLC computer control -------------------------------------------------------------- 1 Unit
  • Output table --------------------------------------------------------------------------- 1 Unit

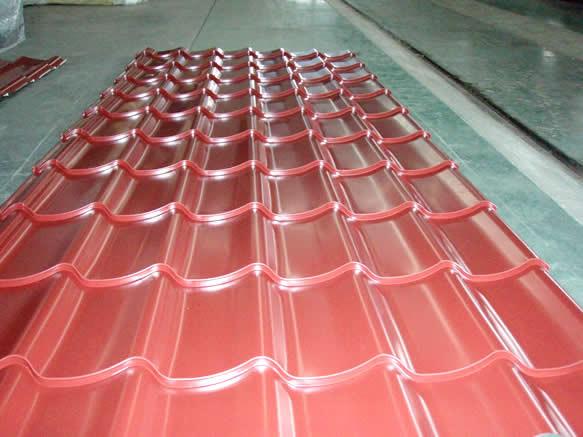

Tile Profile Drawing

Metal Roof / Color Steel Glazed Tile Roll Forming Machine, Color Steel Glazed Tile Machine
