Specifications
Place of Origin :
China
Brand Name :
TECHWELL
Certification :
CE
Model Number :
TW-RWM
MOQ :
1 Set
Price :
Contact Us
Packaging Details :
Standard packing
Delivery Time :
55-65 working days
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 sets
Description


Widespan IBR Roll Forming Machine With Hydraulic Cutting, Panasonic PLC Control System

Main Specifications of IBR Roll Forming Machine

Item Widespan IBR Roll Forming Machine
Coil Material Thickness 0.3-0.8mm
Coil width 925mm or 940mm, Custom-made
Yield Strength 250-350 Mpa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
IBR Roll Forming Machine Forming Stations 18 Stations ( Depend on Profiles )

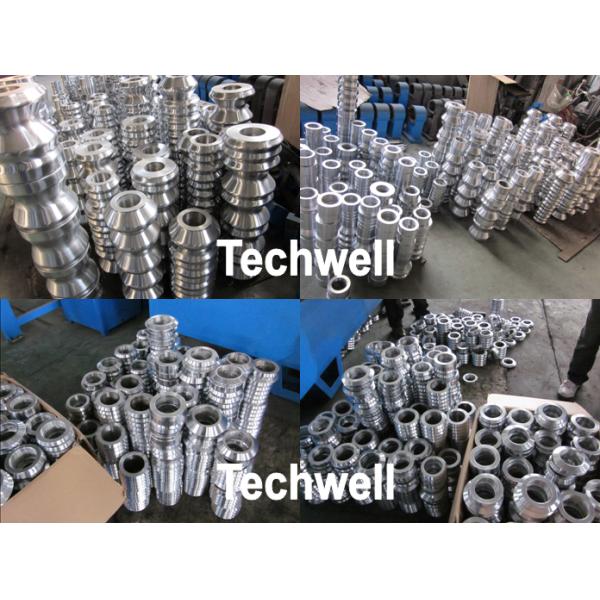

Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 76mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 5.5KW
Cutting Cutting type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
Cutting power 3KW
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Runout Table Table type Simple nonpower type
Function To support the finished panels

Main Components of IBR Roll Forming Machine

Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Widespan IBR Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units

Reference IBR Drawings

Widespan IBR Roll Forming Machine With Hydraulic Cutting, Panasonic PLC Control System

Applications

IBR Sheet, IBR Sheeting, Chromadeck IBR Roof Panel, IBR Roof Sheeting, Trapezoidal roof panel, trapezoidal sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

Our Advantage

  • Copra designing software
  • 5-8 technicians every month specially do international installation and debugging
  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
