18 Groups Forming Roller Stand Upright Rack Roll Forming Machine for Storage Rack

Main Specifications Of Upright Rack Roll Forming Machine

1). 4 Ton Manual Uncoiler

1. Machine frame: welding structure with shot lastingtreatment
2. Components: Base, brake device, inner hole support, Expanding / tighten device
3. Weight capacity of Decoiler: 4Ton Max
4. Inner diameter of coil: 508mm

2). 7 Roller Leveling Machine

1. 2 Rollers pinch feeding, 7 rollers leveling
2. leveling roller diameter: about Φ 90mm
3. Leveling roller material: high grade 40Cr
4. Heat treatment of leveling roller: surface Hi-frequency quench treatment
5. Leveling motor power: 3KW

3). Servo Feeding Machine

1. Servo motor power: 3KW
2. Servo motor brand: YASKAWA (JAPAN)
3. To exact accurately feed the sheet into punching machine according to the set program

4). Press Machine

1. Punching Pressure: 80 Ton
2. Punching Mould size: according to drawing
3. Punching Mould: 1 set

5). Main Upright Racking Roll Forming Machine

1. Forming material thickness: 2-3mm
2. Forming material type: GI
3. Machine Frame: high grade steel welded and tempering treatment
4. Forming Motor: ≈15KW
5. Drive type: Gearbox Drive
6. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
7. Shaft Diameter: Φ 75mm
8. Bearing: HRB bearing ( Top Chinese brand )

6). Hydraulic Cutting & Hydraulic Station

1. Cutting type: Hydraulic Post-cutting after roll forming,
2. When Cutting, Machine stop
3. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
4. Hydraulic Station Power: 5.5KW

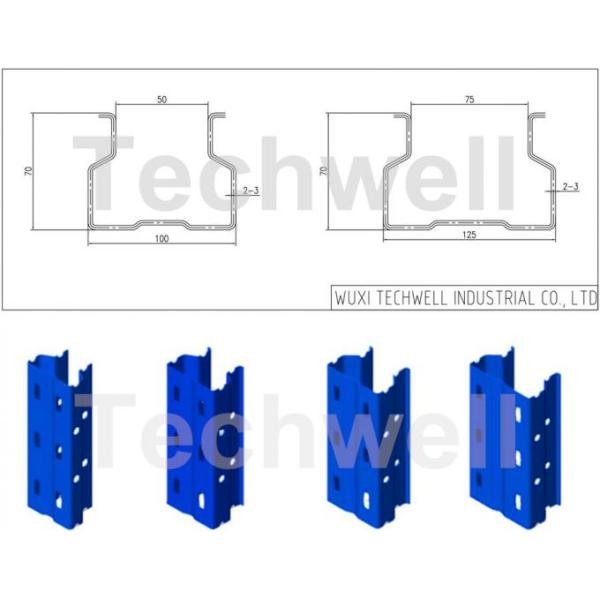

Rack Profile Drawings

Working Flow

Decoiler ---- Leveling ----- Servo Feeding --- Press Machine --- Roll Forming ---- Cutting ---- Run out tables
