Quck Change C / Z Shaped Purlin Roll Forming Machine for Making C / Z Purlin Sheet

A). Basic Introduction of C Z Purlin Roll Former

• The CZ Purlin formed by this CZ Purlin forming machine has many advantages: well compressive strength and flatness; automatic measuring, cutting and punching; high-level of automation and conveniently installation.
• It can be used in large and medium-size enterprises civil construction with main body stress structure, like the plant, the warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, arbour supported by roofing load-bearing and wall surface.

B). Main Specifications of C Z Purlin Roll Former

1. Material: G.i Coil or Carbon steel
2. Material Thickness:1.0-3.0mm
3. Landscape orientation adjustment range of Hole distance : 45-500mm
4. Length of purlin: >3m
5. Forming Stations: about 16 Steps
6. Leveling Stations: 7
7. Feeding Stations: 2
8. Main Power: 15KW
9. Machine Diameter: about 12000mm(L) x 2300mm(W) x 1600mm(H) ( including main motor )
10. Weight of machine: about 18.5 Ton
11. One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
12. C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
13. This line main forming drive adopt reducer motor and frequency conversion control, speed control…
14. It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.

C). Main Components

1. Decoiler ----------------------------------------------- 1 Unit
2. Feeding & Leveling --------------------------------- 1 Unit
3. Hydraulic punching device ------------------------ 1 Unit
4. Hydraulic cutting device --------------------------- 1 Unit
5. Main roll forming machine ------------------------- 1 Unit
6. Hydraulic Station ------------------------------------ 1 Unit
7. PLC computer control ------------------------------ 1 Unit
8. Output table ------------------------------------------ 1 Unit

D). Applications

Steel CZ purlins, C/Z purlins, Steel structuere CZ purlin, Metal CZ purlins,

E). Competitive Advantages

Professional Team Support

High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience

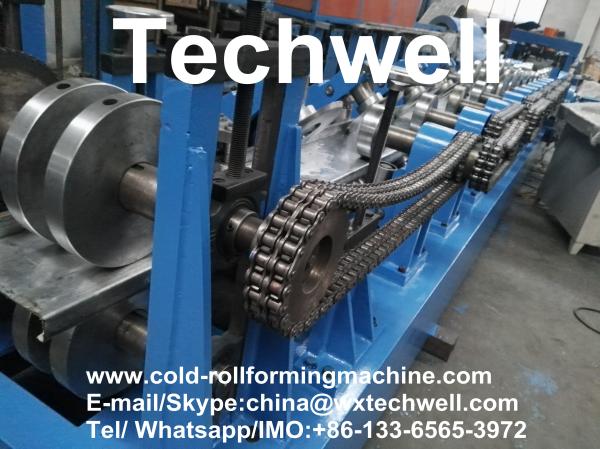

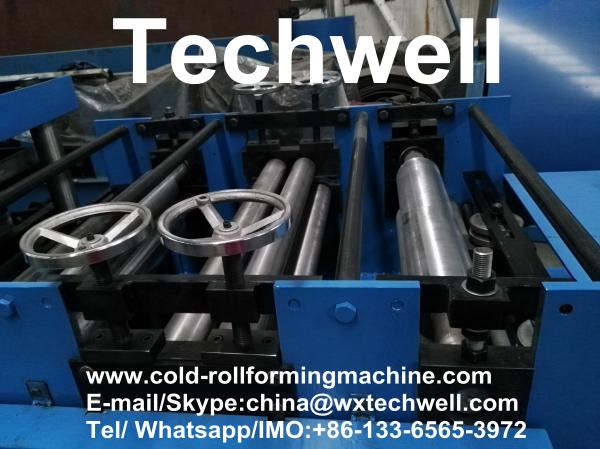

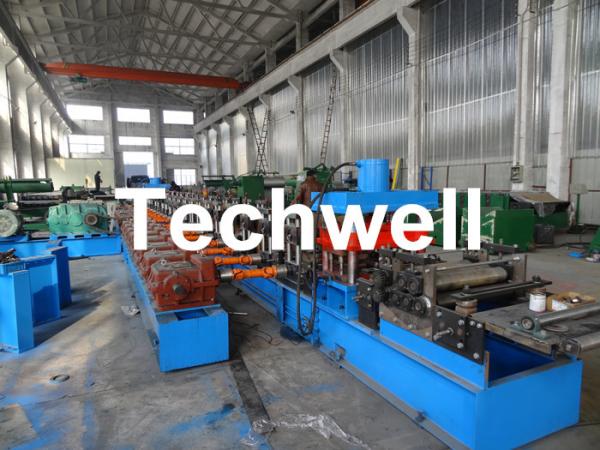

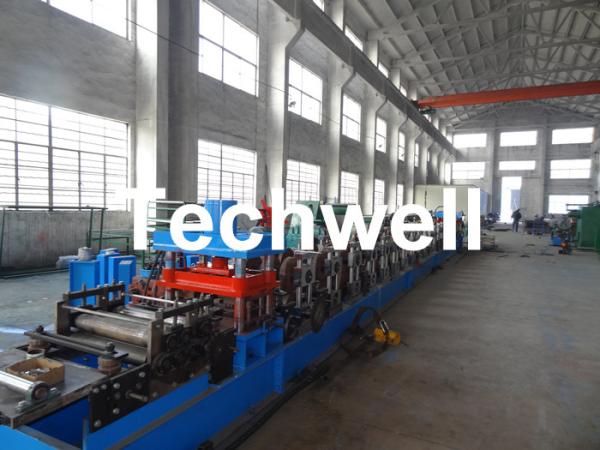

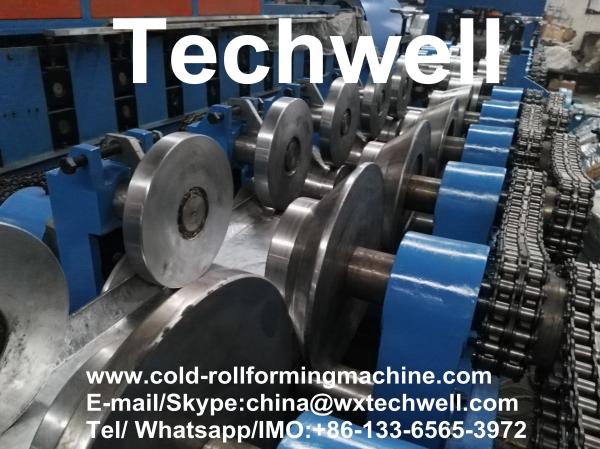

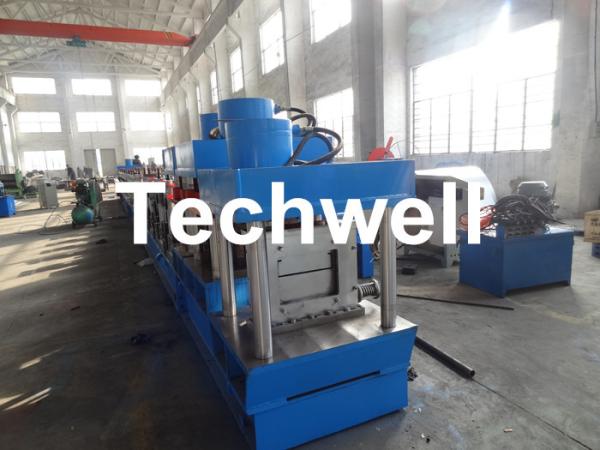

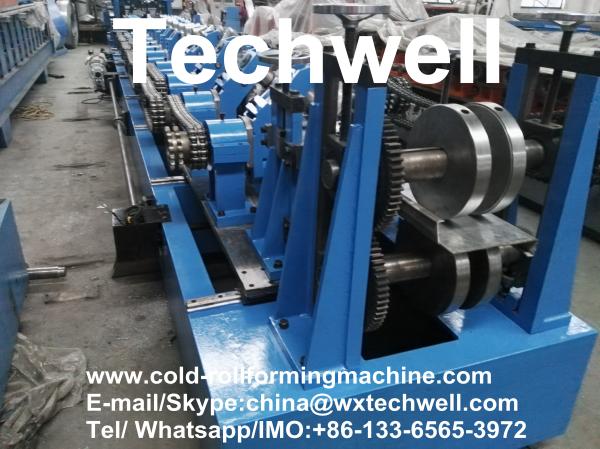

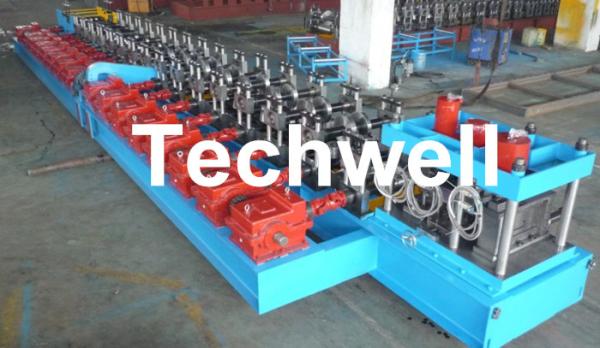

F). More Machine Pictures

G). Customer Visiting Photos

H). FAQ

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine.

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler.

Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.

Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: Do we receive any updates while machine is in the manufacturing process?

A: Yes. Regular updates on progress will be sent to you.
