Specifications
Brand Name :
TECHWELL
Model Number :
TW-RBB200
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Contact Us
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 Sets
Delivery Time :
55-65 working days
Packaging Details :
Standard packing
Power Type :
380V/3PH/50HZ
Material :
Galvanized Coil
Box Interlock Machine :
4 Forming Stations
Hydraulic Power :
4.0KW
Shaft Diameter :
Φ 70mm
Main Power :
11kw
Description

Rack Beam Box Profile Roll Forming Machine with 11KW Main Power and 70mm Pallet Shaft Diameter

A). Main Specification

1. Material: Galvanized Coil or Carbon Steel

2. Width: Depend on profile

3. Thickness: 1.5-2.0MM

4. Yield Strength: 50Mpa Max

5. Forming Station: 0-20m/min excluding cutting

6. Shaft Diameter: Φ 70mm

7. Roller Material: 45# Steel

8. Drive Type: Chain Drive

9. Cutting Model: Hydraulic Cutting

10. Power Type: 380V/3PH/50HZ

11. Main Power: 11KW

12. Hydraulic Power: 4.0KW
13. PLC Control System: Panasonic Brand
14. Box Interlock Machine: 4 Forming Stations

B). Working Flow

Manual Decoiler ---- Feeding & Leveling ---- Roll Forming ---- Cutting ---- Run out table - Interlock Machine

Rack Beam Box Profile Roll Forming Machine with 11KW Main Power and 70mm Pallet Shaft Diameter

C). Components

1 Decoiler 1 Unit
2 Main Machine Feeding Guide 1 Unit
Leveling Device 1 Unit
Roll Forming System 1 Unit
Cutting Device 1 Unit
3 PLC Control System 1 Unit
4 Hydraulic Station 1 Unit
5 Run out Table 1 Unit
6 Box Interlock Machine 1 Unit

D). Applications

Box beam, Rack box beam, Shelf box beam, Rack Shelf box beam, Shelf rack box beams

Box beam is the most widely used beam, as the structure is the most strong compare with other type of beam.

E). Competitive Advantages

High Quality

Reasonable Price

Good after Service

Factory Visit

1 Year Warranty

More Than 10 Years Experience

Simple to operate when assemble

Easy to handle the products

Direct manufacturer, provide with high quality and best price.

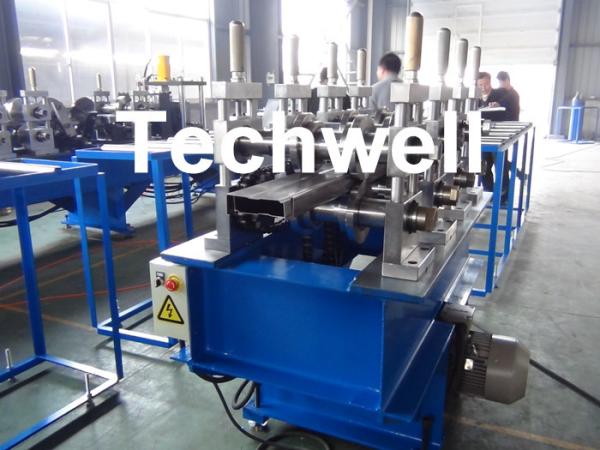

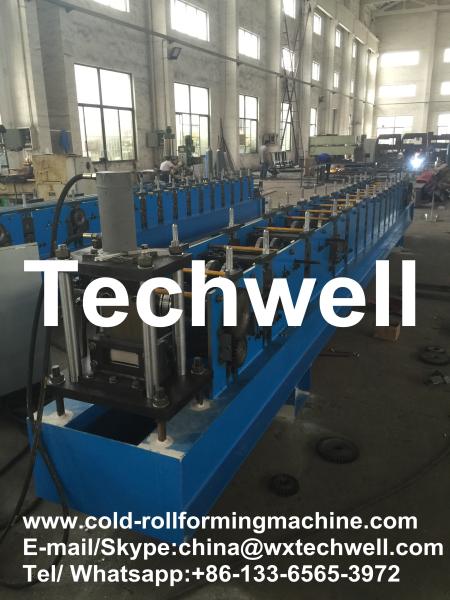

F). Reference Pictures

Rack Beam Box Profile Roll Forming Machine with 11KW Main Power and 70mm Pallet Shaft DiameterRack Beam Box Profile Roll Forming Machine with 11KW Main Power and 70mm Pallet Shaft Diameter
