Specifications
Brand Name :
TECHWELL
Model Number :
TW-RBB100
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Contact Us
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 Sets
Delivery Time :
55-65 working days
Packaging Details :
Standard packing
Material :
Galvanized Coil or Carbon Steel
Material Thickness :
1.5-2.0MM
Forming Station :
14 Steps
Forming Speed :
0-20m/min excluding cutting
Roller Material :
45# Steel
Shaft Diameter :
Φ 70mm
Box Interlock Machine :
4 Forming Stations
Main Power :
11kw
Description

Storage Rack Box Beam Roll Forming Machine for 1.5-2.0MM Galvanized Coil or Carbon Steel Material

Box beams are made from two identical channel sections nested together to form a box.

A). Working Flow

Manual Decoiler ---- Feeding & Leveling ---- Roll Forming ---- Cutting ---- Run out table - Interlock Machine

B). Main Specification

No. Item Parameter
1

Suitable Material

 Type Galvanized Coil or Carbon Steel
Width Depend on profile
Thickness 1.5-2.0MM
Yield Strength 350Mpa Max.
2 Forming Station ≈ 14
3 Forming Speed ≈ 0-20m/min excluding cutting
4. Shaft Diameter Φ 70mm
5 Roller Material 45# Steel
6 Drive Type Chain Drive
7 Cutting Model Hydraulic Cutting
8

Power Source

 Type 380V/3PH/50HZ
Main Power ≈11KW
Hydraulic Power ≈4.0KW
9 PLC Control System Panasonic Brand
10 Box Interlock Machine 4 Forming Stations

C). Component

1 Decoiler 1 Unit
2 Main Machine Feeding Guide 1 Unit
Leveling Device 1 Unit
Roll Forming System 1 Unit
Cutting Device 1 Unit
3 PLC Control System 1 Unit
4 Hydraulic Station 1 Unit
5 Run out Table 1 Unit
6 Box Interlock Machine 1 Unit

D). Applications

Box beam, Rack box beam, Shelf box beam, Rack Shelf box beam, Shelf rack box beams

Box beam is the most widely used beam, as the structure is the most strong compare with other type of beam.

E). Competitive Advantages

High Quality

Reasonable Price

Good after Service

Factory Visit

1 Year Warranty

More Than 10 Years Experience

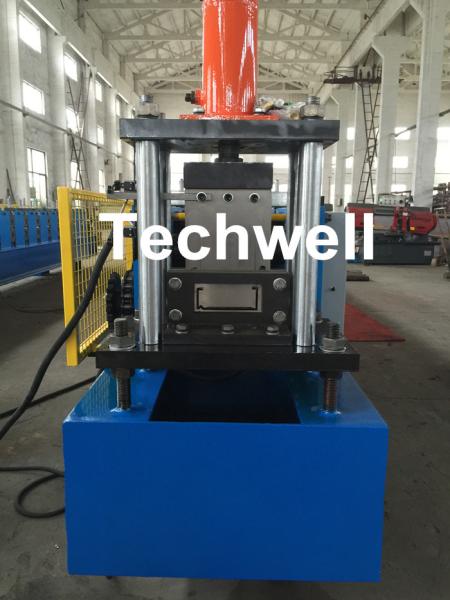

F). Reference Pictures

Storage Rack Box Beam Roll Forming Machines for 1.5-2.0MM Galvanized Coil or Carbon Steel MaterialStorage Rack Box Beam Roll Forming Machines for 1.5-2.0MM Galvanized Coil or Carbon Steel MaterialStorage Rack Box Beam Roll Forming Machines for 1.5-2.0MM Galvanized Coil or Carbon Steel Material

Item Contact Methods
Contact Person Lemon
E-mail / Skype sales@wxtechwell.com
Tel / Whatsapp/ IMO +86-15861597732
Website https://www.wxtechwell.com
