Steel Storage Shelf Sheet Upright Rack Roll Forming Machine for Metal Storage Shelving Profile

A). Basic Introduction

Racking roll forming machine is also known as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine. This storage rack roll forming machinery is composed of automatic decoiler, guiding device, leveling and feeding device, punching unit, molding parts, hydraulic Cutting, run-out table, electronic control system and hydraulic system.

Shelf Rack Roll Forming Machine adopt servo controlled material feeding technology for complex punching to guarantee precision. According to your requirement, storage rack roll forming machine also adopts track cutting technology to ensure the machine capacity and gear box transmission and ensure the machine`s rigidity and working strength.

B). Main Specifications

1. Material Thickness:1.8-2.3mm
2. Total Power: 22.5KW
3. Machine Diameter: about 13500mmx1200mmx1300mm
4. Weight of machine: about 13 Ton
5. Roll Diameter: 75mm
6. Forming Roller stand: 18 Groups
7. Main Axis material: First grade 45# steel, heated and quenched
8. Roller material: GCr15 Steel, Quenched and heated process
9. Forming Speed: 12-15 m/ min

C). Main Components

Decoiler --------------------------------------------- 1 Unit

Feeding & Leveling -------------------------------- 1 Unit

Hydraulic punching device ------------------------ 1 Unit

Main roll forming machine ------------------------ 1 Unit

Hydraulic cutting device --------------------------- 1 Unit

Hydraulic Station ----------------------------------- 1 Unit

PLC computer control ------------------------------ 1 Unit

Output table ---------------------------------------- 1 Unit

D). Working Flow

Decoiler ---- Servo Feeding --- Punching--- Levelling--- Roll Forming ---- Cutting ---- Run out table

E). Applications

With the production advantage of the shelving & storage racks Roll Forming Machine, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly.

Storage rack, storage shelf, Steel rack,steel shelf, rack beam.

F). Competitive Advantages

1.Durable and widely used products

2.Simple to operate when assemble

3.Easy to handle the products

4.Direct manufacturer, provide with high quality and best price.

5.Provide sample in free.

6.Cutting service.

7.Products and design solution supplied fast and freely

8.Best design oriented for your special requirements

9.Lifelong technical support

10.Professional team support

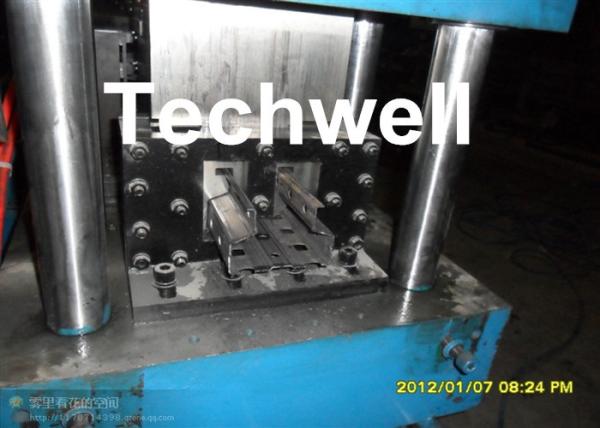

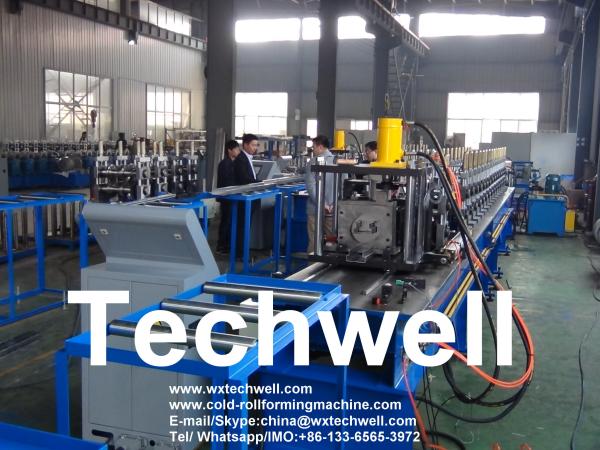

G). More Pictures

H). Reference Products Pictures

H). FAQ

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine.

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler.

Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.

Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
