Welded Wall Plate Structure PPGI, GI Roof Roll Forming Machine For Making Roof Wall Cladding, Roof Panel

Maintenance of Roof Roll Forming Machine

Daily maintenance plays an very importance role in extending the operation time and of roof wall sheet roll forming machine and the good quality finished roof wall panel. The following points should be part of the machine's daily production and usage routine.

  • Regularly lubricated the outside parts of the roof wall roll forming machine, such as the driving chain...
  • Regularly brush the surface of roller, particularly when working outside. If you do not use the roof panel forming machine in a long time, you should apply luricating oil on the roller surface, make sure you clean it for next time running machine.
  • If the roof wall sheet roll forming machine is not operated in a long period, should cover it with plastic film, to avoid getting rain or dust on the machine, or avoid the machine becoming dampt, especially the PLC electric control board.
  • Make sure the cutting system is lubricated when necessary.
  • Check the Hydraulic station often and the oil quantity of the deceleration machines, add more oil if the oil level is low.
  • Check the electric appliances box and every leads conjuction circumstance of the roof wall roll forming machine.


Main Specifications


1). 5 Ton Manual Decoiler

1. Decoiler Type: Manual type decoiler
2. Weight Capacity of Decoiler: 5Ton
3. Manual expanding
4. Passive uncoiling
5. I.D: 508mm

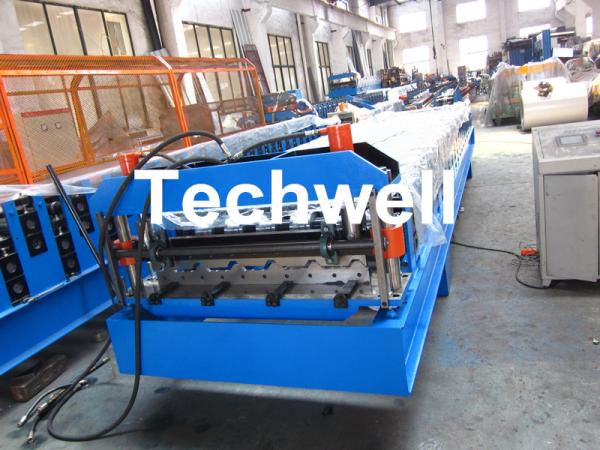

PPGI / GI Roof Roll Forming Machine , Wall Panel Forming Machine Fully Automatic


2). Main Roll Forming Part

1. Forming material thickness: 0.3-0.7mm
2. Forming material type: PPGI, GI
3. Machine frame: high grade steel welded and tempering treatment
4. Forming structure: Welded wall plate strcuture
5. Forming motor: 7.5KW
6. Shaft material: 45# high grade steel tempering treatment (HB220-260)
7. Shaft diameter: 75mm
8. Roller material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm
9. Forming speed: about 0-15m/min (excluding cutting time)
10. Forming station: ≈ 18 stations


3). Hydraulic Cutting & Hydraulic Station

1. Cutting type: Hydraulic cutting after roll forming, Burr-free cutting
2. When cutting, Machine stop
3. Cutting blade: 1 SET
4. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62
5. Hydraulic station power: 4KW
6. Hydraulic pressure: 15Mpa
7. Cutting Tolerance: +/-1.5mm


4). Electrical Control System

1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

PPGI / GI Roof Roll Forming Machine , Wall Panel Forming Machine Fully Automatic


5). Run out Table

1. Roller type support table
2. to support the profile sheet after cutting



Main Components

  • Decoiler / Uncoiler ----------------------------------------------------------------1 Unit
  • Feeding Guide --------------------------------------------------------------------1 Unit
  • Main Roll Forming Machine -----------------------------------------------------1 Unit
  • Hydraulic Cutting System --------------------------------------------------------1 Unit
  • Hydraulic Station -------------------------------------------------------------------1 Unit
  • PLC Computer Control Box ------------------------------------------------------1 Unit
  • Support Tables --------------------------------------------------------------------1 Unit


Reference Profile Drawing

PPGI / GI Roof Roll Forming Machine , Wall Panel Forming Machine Fully Automatic
PPGI / GI Roof Roll Forming Machine , Wall Panel Forming Machine Fully Automatic
